Hyundai Santa Fe (TM): Heater / Auto Defogging Actuator. Components and components location

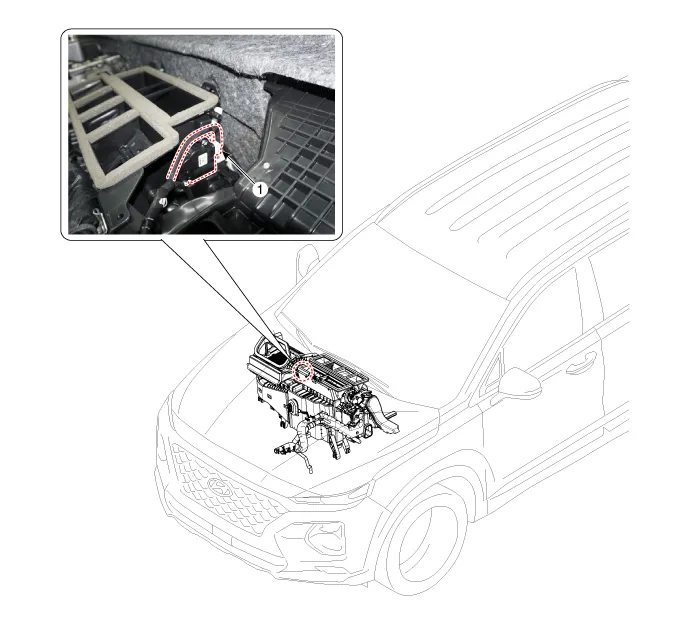

| Components Location |
| 1. Auto defogging
actuator |
Description The auto defogging sensor is installed on the front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector.
