Hyundai Santa Fe (TM): Front Seat / Front Seat Frame Assembly. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly. Components and components location

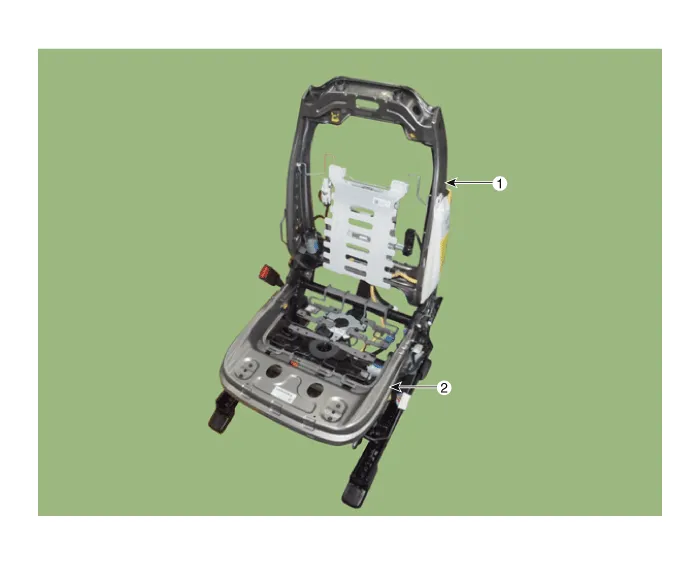

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

    Replacement    • Put on gloves to prevent hand injuries.

    Replacement    • Put on gloves to prevent hand injuries.
