Replacement

•
When installing the belt, make sure not to damage the pretensioner.
1.

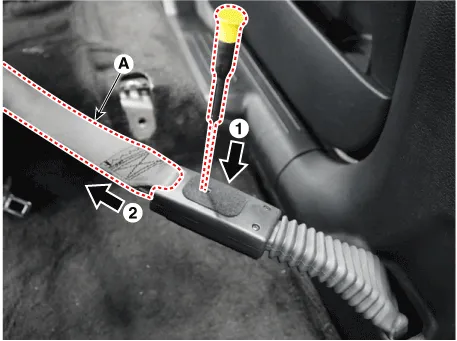

Remove the front anchor seat belt (A).
2.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
4.

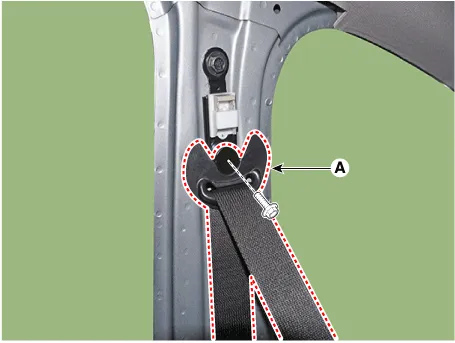

Loosen the mounting bolt and remove the front seat belt upper anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

5.

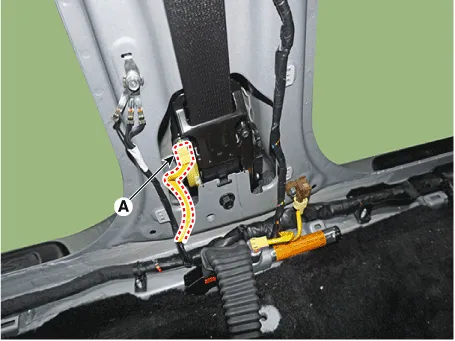

Press the lock pin and separate the front seat belt pretensioner connector (A).
6.

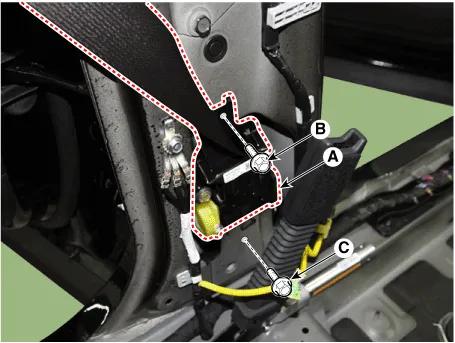

Loosen the mounting bolt and remove the front seat belt pretensioner (A).
Tightening torque :
Bolt B : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m , 5.8 - 8.7 lb-ft)
Bolt C : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

7.
To install, reverse removal procedure.

•
When installing the connector, be sure to insert it to the anchor pretensioner until "click" sound is heard and then check it for secure installation by pulling it.
•
After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front Seat Belt Pretensioner

    Component Location 1. Height Adjust
