Hyundai Santa Fe (TM): Body (Interior and Exterior) / Front Seat Belt

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat Belt

Components and components location

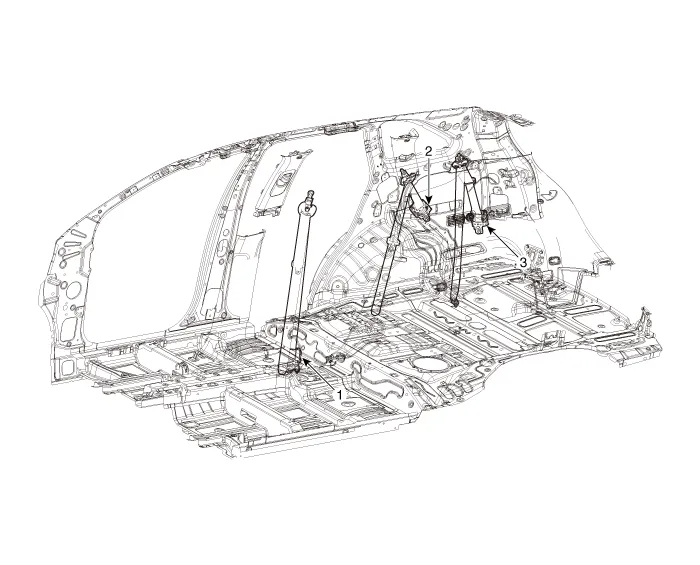

Components

1. Front seat belt retractor
2. Second row seat belt retractor
 3. Third row seat belt retractor

Front Seat Belt Pretensioner. Components and components location

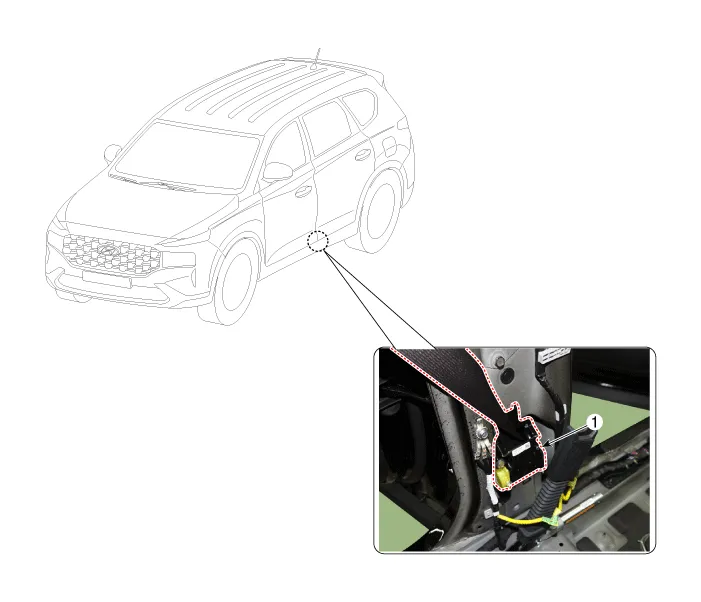

Component Location

1. Front Seat Belt Pretensioner


Front Seat Belt Pretensioner. Repair procedures

Replacement

•
When installing the belt, make sure not to damage the pretensioner.
1.

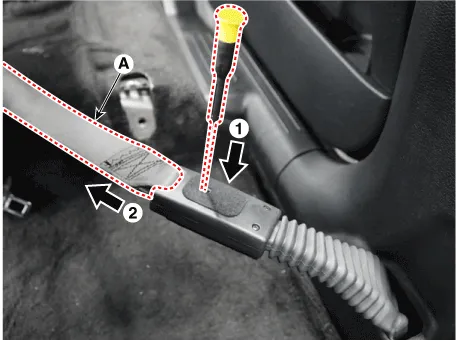

Remove the front anchor seat belt (A).
2.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
4.

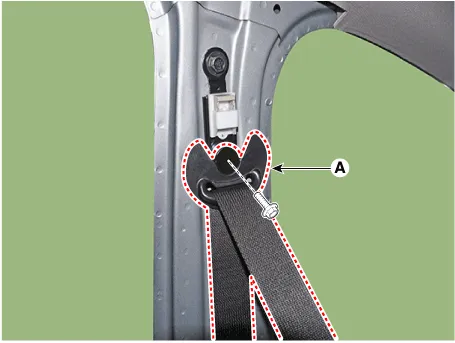

Loosen the mounting bolt and remove the front seat belt upper anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

5.
Press the lock pin and separate the front seat belt pretensioner connector (A).
6.

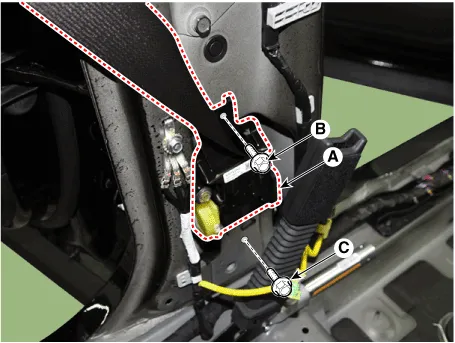

Loosen the mounting bolt and remove the front seat belt pretensioner (A).
Tightening torque :
Bolt B : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m , 5.8 - 8.7 lb-ft)
Bolt C : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

7.
To install, reverse removal procedure.

•
When installing the connector, be sure to insert it to the anchor pretensioner until "click" sound is heard and then check it for secure installation by pulling it.
•
After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

Height Adjust. Components and components location

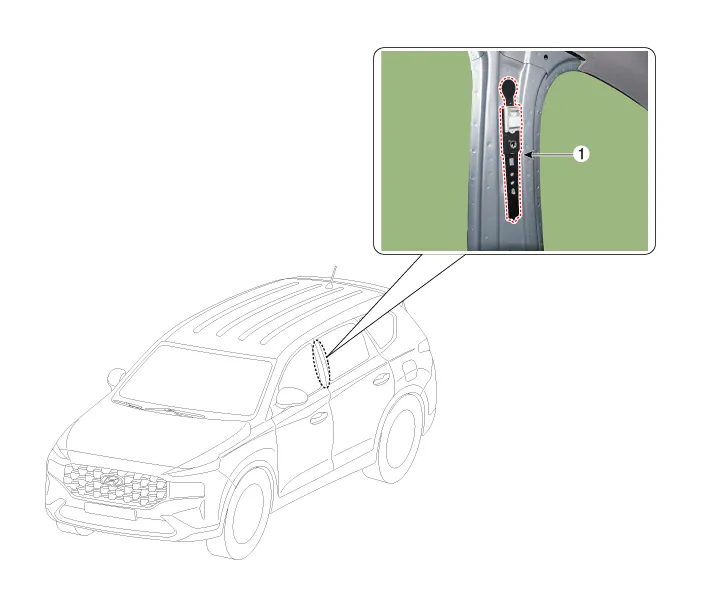

Component Location

1. Height Adjust

Height Adjust. Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.

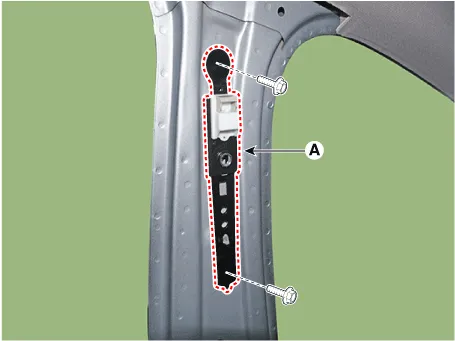

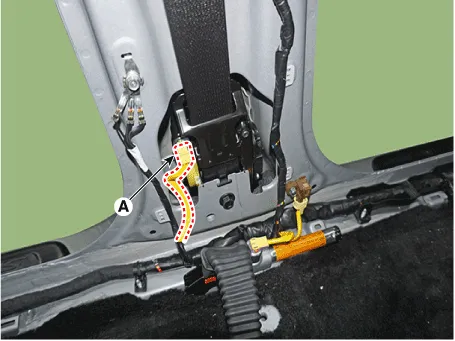

After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Front Seat Belt Buckle. Components and components location

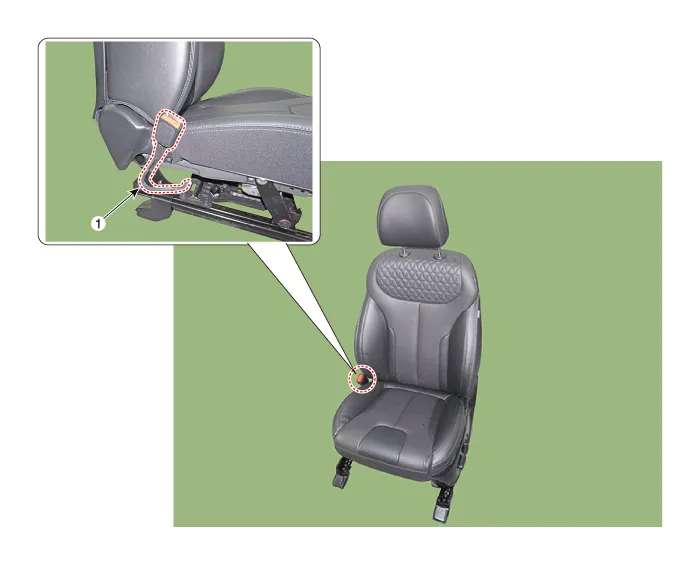

Component Location

1. Front seat belt buckle

Front Seat Belt Buckle. Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

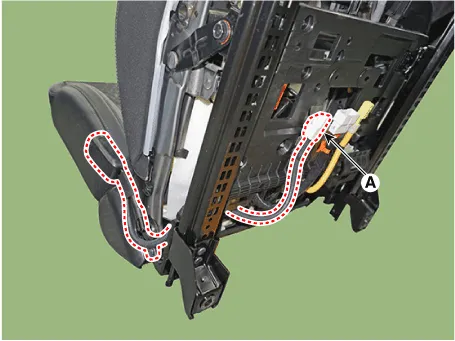

Disconnect the front seat belt buckle connector wiring (A).
3.

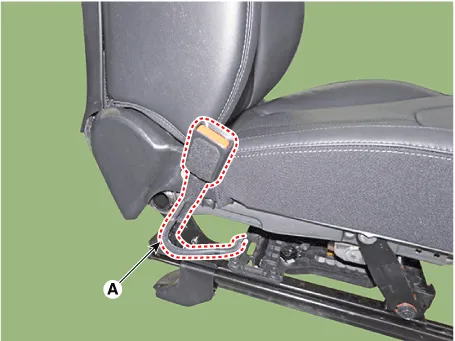

After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

4.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.
