Hyundai Santa Fe (TM): Timing System / Front Oil Seal. Repair procedures
| Removal and Installation |
|
| 1. |
Remove the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
|
| 2. |

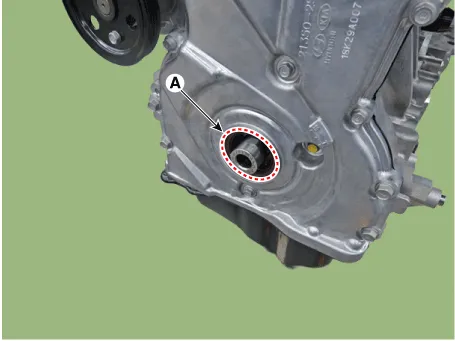

Remove the front oil seal (A).
|
| 3. |

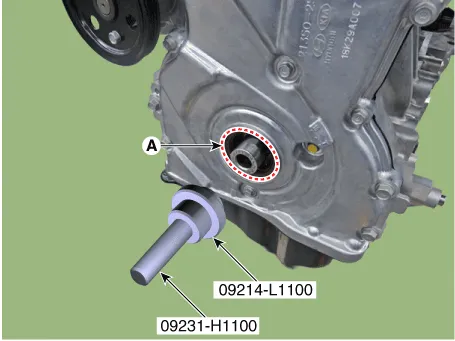

Install the crankshaft front oil seal (A) using SST (09214 - L1100,
09231-H1100).
|
Components 1. Front oil seal 2. Timing chain cover 3. Timing chain 4. Cam to cam bracket 5. Timing chain guide 6.
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
