Hyundai Santa Fe (TM): Timing System / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Timing System / Components and components location

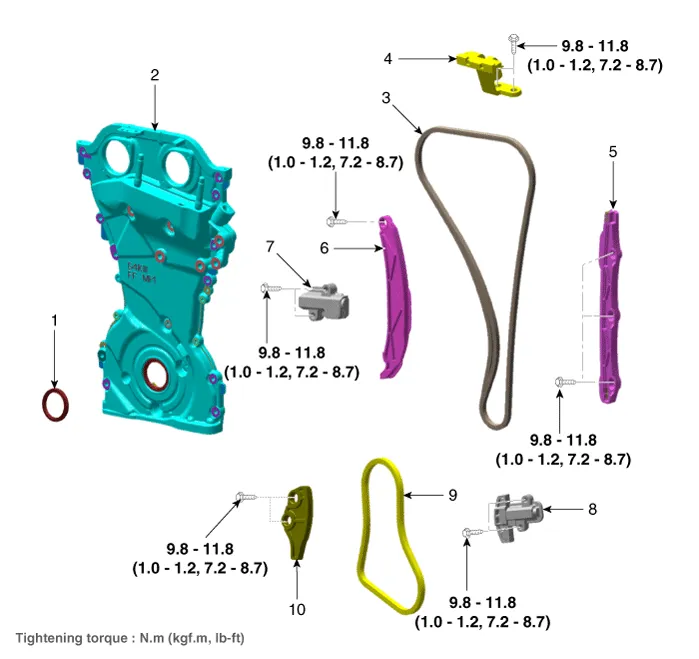

| Components |
| 1. Front oil
seal 2. Timing chain cover 3. Timing chain 4. Cam to cam bracket 5. Timing chain guide |
6. Timing chain
tensioner arm 7. Timing chain tensioner 8. Oil pump chain tensioner 9. Oil pump chain 10. Oil pump chain guide |
Removal and Installation • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
