Hyundai Santa Fe (TM): Front Door / Front Door Frame Garnish. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Frame Garnish. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.
Remove the front door belt outside weatherstrip.
(Refer to Front Door - "Front Door Outside Weatherstrip")
2.

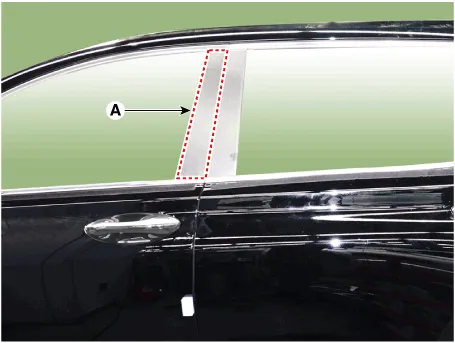

Using a remover and remove the front door frame garnish (A).
3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
•
If any parts are damaged after removing the door frame garnish, replace it with a new one.
