Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.

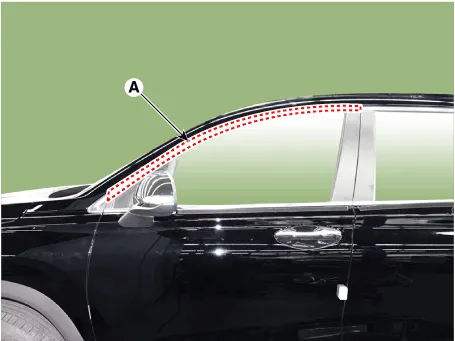

Using a remover and remove the front door frame molding (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
•
If any parts are damaged after removing the door frame molding, replace it with a new one.
