Replacement
[Front door side weatherstrip]
1.

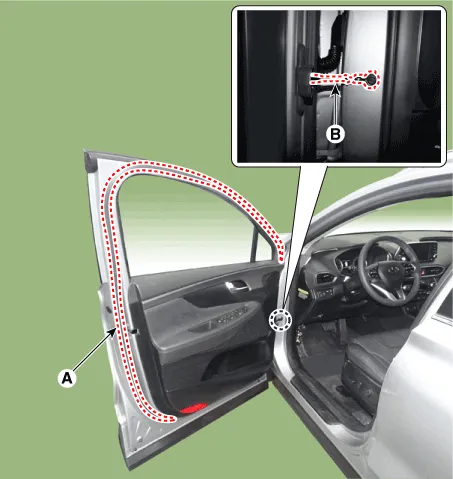

Loosen the front door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.
Detach the clips, then remove the front door side weatherstrip (A).
3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
[Front door body side weatherstrip]
1.

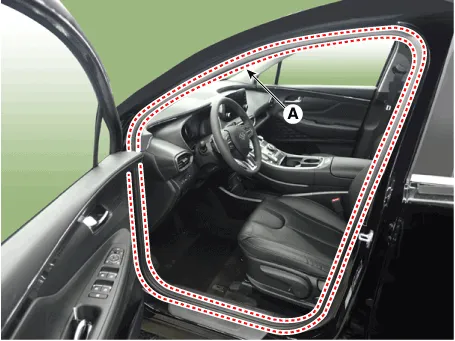

Detach the clips, then remove the front door body side weatherstrip (A).
[LH]

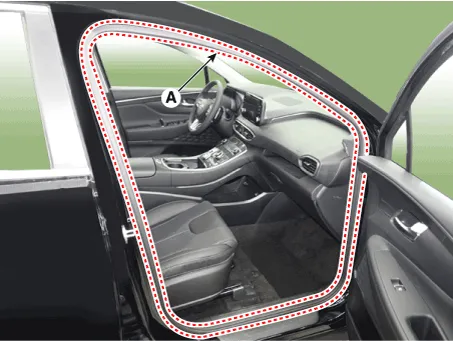

[RH]
2.
To install, reverse the removal procedure.
