Hyundai Santa Fe (TM): Brake System / Front Disc Brake. Components and components location

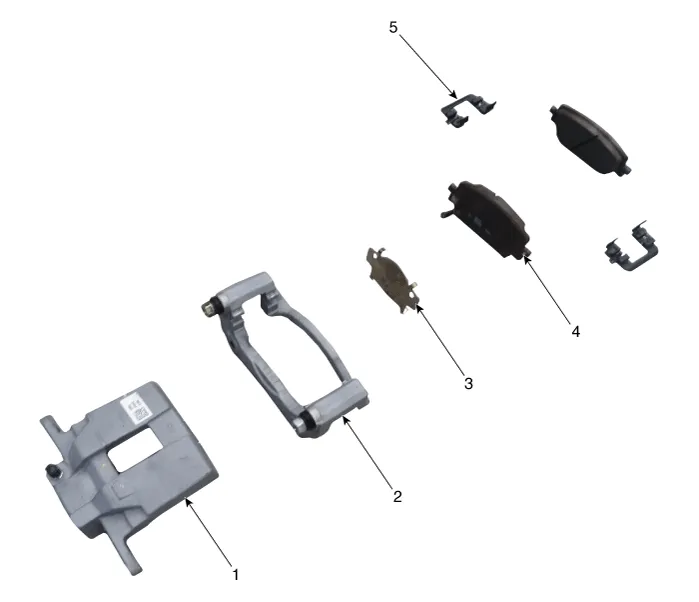

| Components |
| 1. Caliper body 2. Caliper carrier 3. Pad inner shim |
4. Brake pad 5. Pad retainer |
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel.
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
