Hyundai Santa Fe (TM): Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW)
- Description and operation

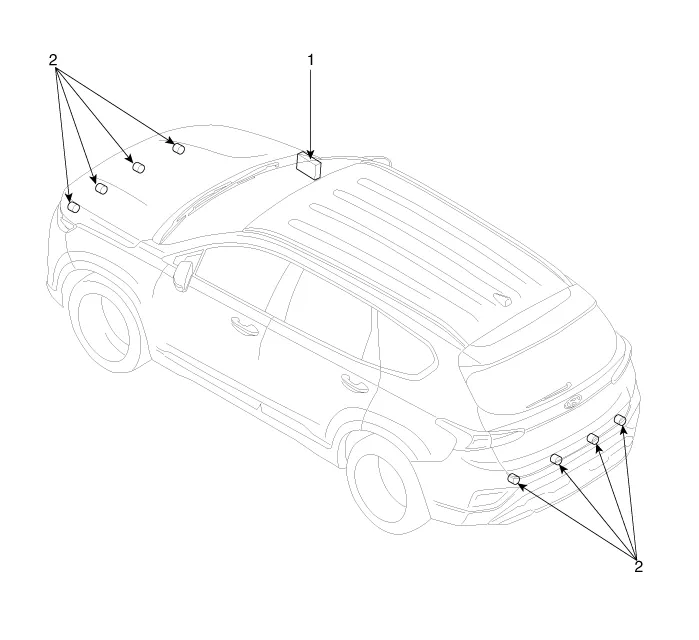

- Components and components location
- Specifications
- Ultrasonic Sensor. Schematic diagrams
- Ultrasonic Sensor. Repair procedures

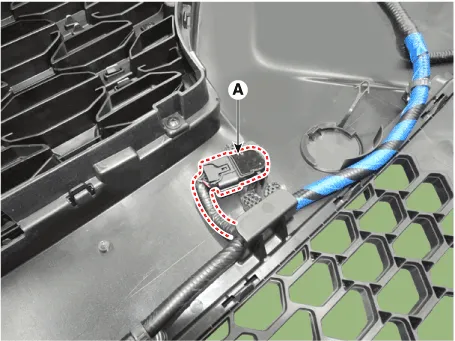

Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim.

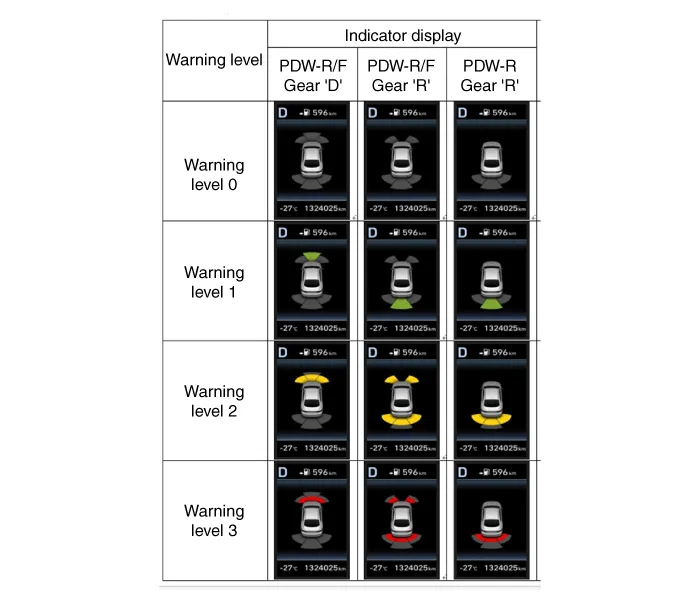

Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Description and operation
Description and operation The System may be limited when • The radar sensor or camera is blocked with a foreign object or debris.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Schematic diagrams

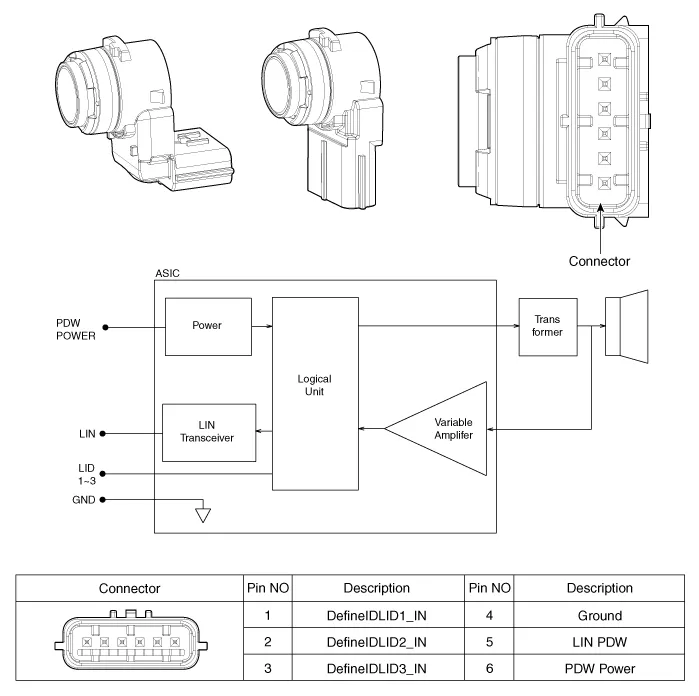

System Block Diagram Component Parts And Function Outline Component part Function Vehicle-speed sensor, ESP/ABS Control Module Converts vehicle speed to pulse. ECM Receives signals from sensor and control switches.
