Components and components location

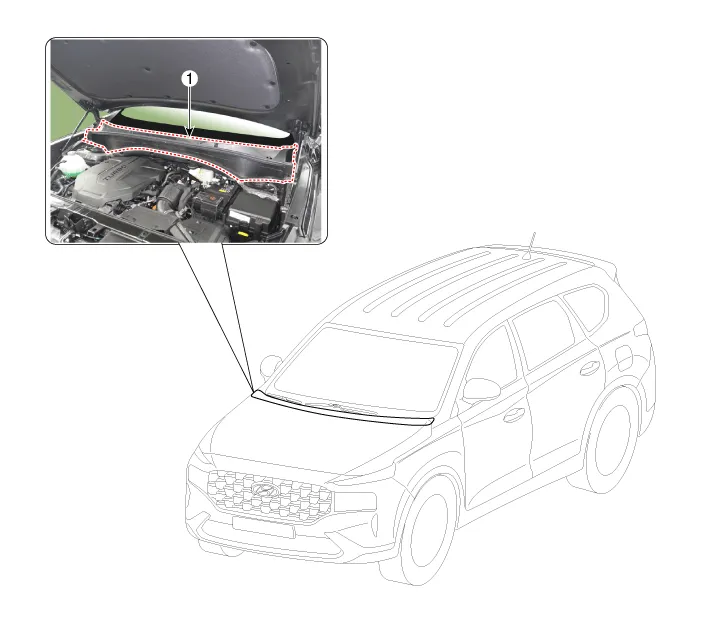

Component Location

1. Cowl Top Cover

Repair procedures

Replacement
1.
Remove the cap and the nuts, and then remove the wiper arm (A).
Tightening torque :
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

2.
Disconnect the washer nozzle (A).
3.
Detach the clips, then remove the cowl top cover (B).
4.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
