Hyundai Santa Fe (TM): Interior Trim / Door Step Trim. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Interior Trim / Door Step Trim. Repair procedures


•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Using a screwdriver or remover and remove the front door step trim (A).

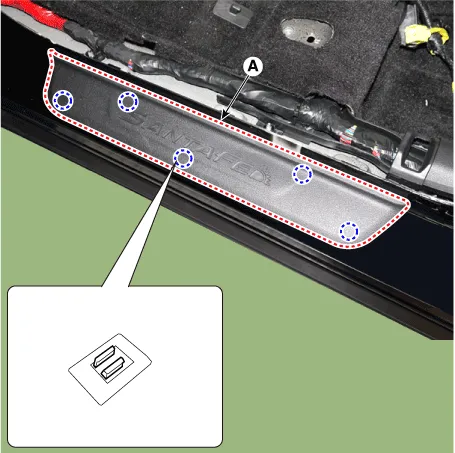

[Front]

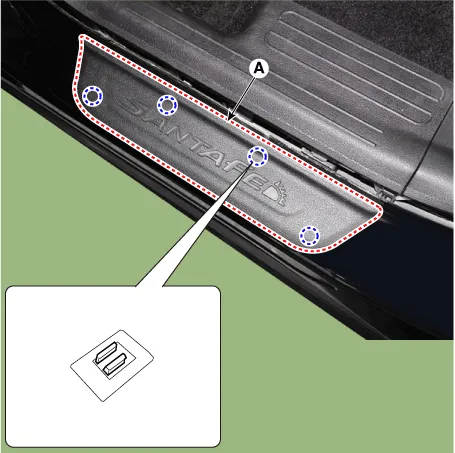

[Rear]
2.
To install, reverse removal procedure.

•
Replace any damaged clips.
