Removal and Installation

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Disconnect the battery negative terminal.
2.
Remove the air cleaner assembly.
(Refer to Intake and Exhasut System - "Air Cleaner")
3.
Remove the front bumper cover.
(Refer to Body (Interior and Exterior) - "Front Bumper Cover")
4.

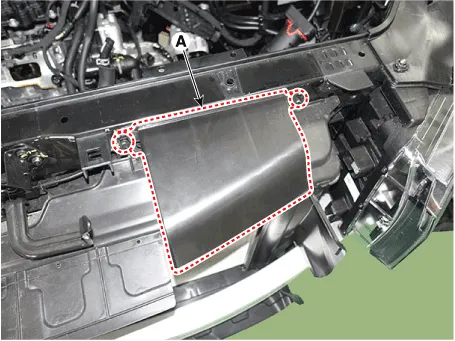

Remove the air intake shield (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

5.

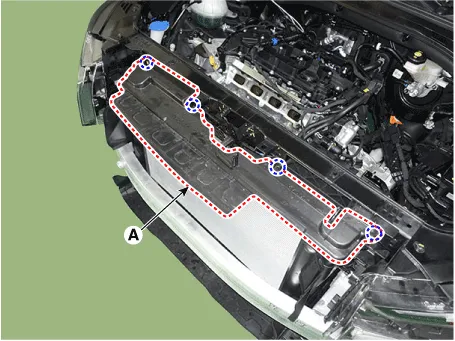

Remove the radiator upper air guard (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

6.

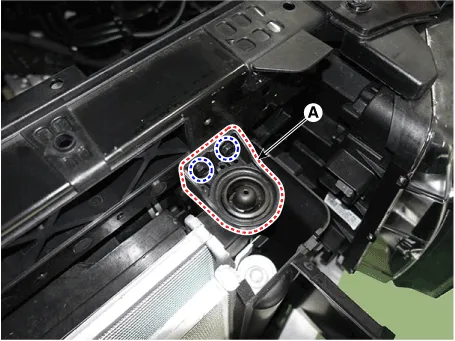

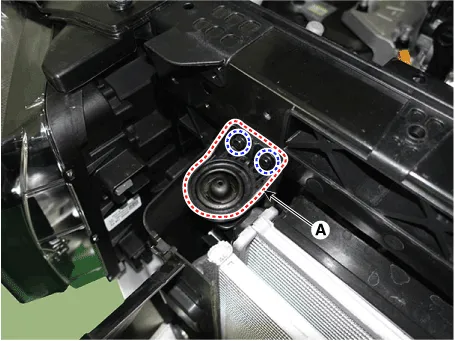

Remove the radiator mounting bracket (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
[LH]

[RH]
7.
Remove the front bumper beam assembly.
(Refer to Body (Interior and Exterior) - "Front Bumper Beam Assembly")
8.

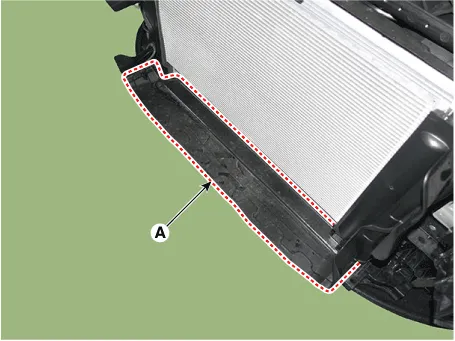

Remove the air dam (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

9.

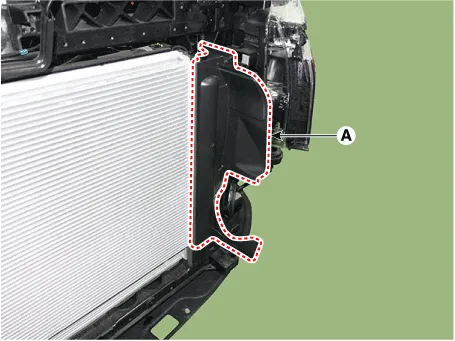

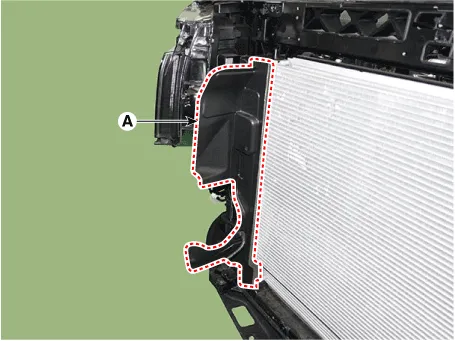

Remove the radiator side air guard (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
[LH]

[RH]
10.

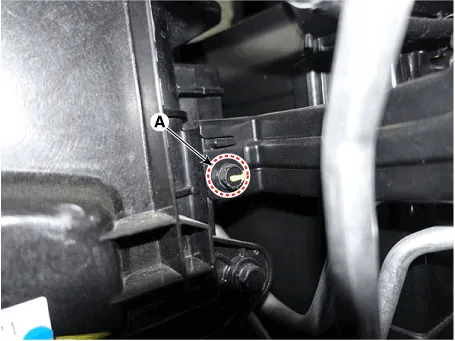

Loosen the A/C pipe bracket mounting bolt (A).
11.

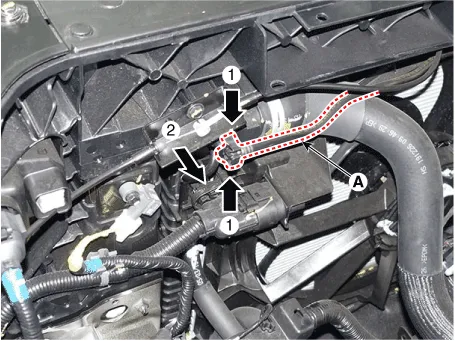

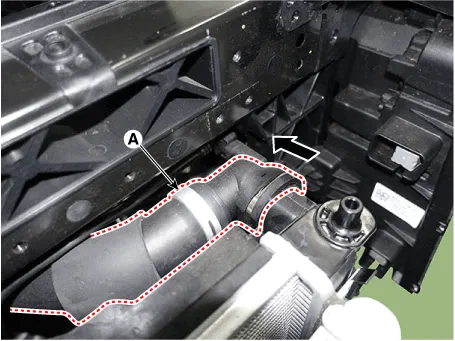

Disconnect the radiator upper hose (A) and degassing hose (B) from radiator.

12.
Separate the condenser from the radiator.
13.
Disconnect the cooling fan from radiator.
14.
Install in the reverse order of removal.
Disassembly
1.

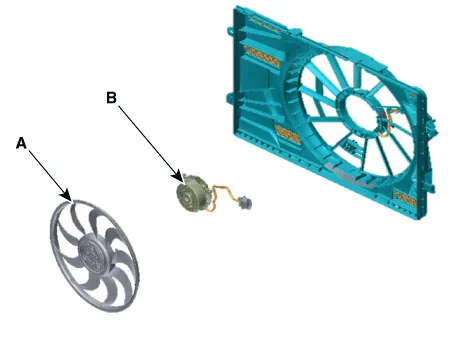

Remove the cooling fan (A) and then remove the cooling fan motor (B) from the cooling fan assembly.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

2.
Install in the reverse order of removal.
Inspection
1.
Turn ignition switch "OFF" and connect the diagnostic tool to the Data Link Connector.
2.
With the gear shift in P (Park) position and ignistion switch "ON" (LED of the Power button illuminates in Red), select the "force drive" function.
3.
Force drive the cooling fan motor.

•
There are two functions for the fan motor force drive: Low speed and high speed.

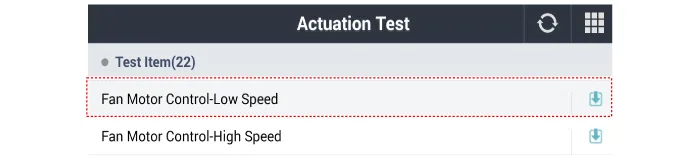

[Fan motor low speed]
1)
Start the "Fan motor low speed" of the force drive function.
2)
Force drive by pressing the start button.
3)
Visually check the operation of the cooling fan.
4)
Stop the force drive by pressing the stop button.

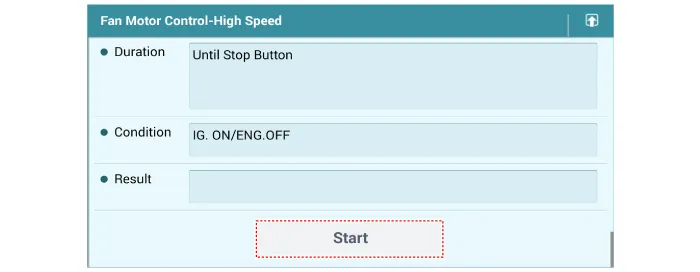

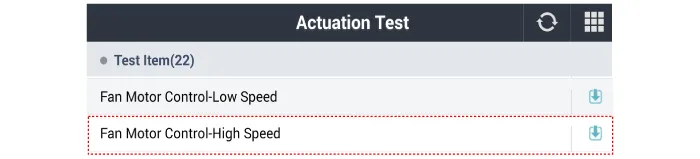

[Fan motor high speed]
1)
Start the "Fan motor high speed" of the force drive function.
2)
Force drive by pressing the start button.
3)
Visually check the operation of the cooling fan.

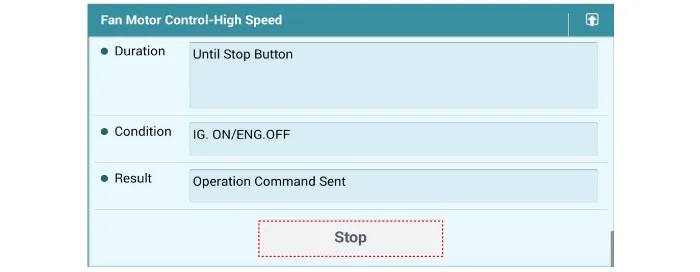

4)
Stop the force drive by pressing the stop button.
