Hyundai Santa Fe (TM): Cruise Control System (CC) / Cruise Control (CC) Switch. Components and components location

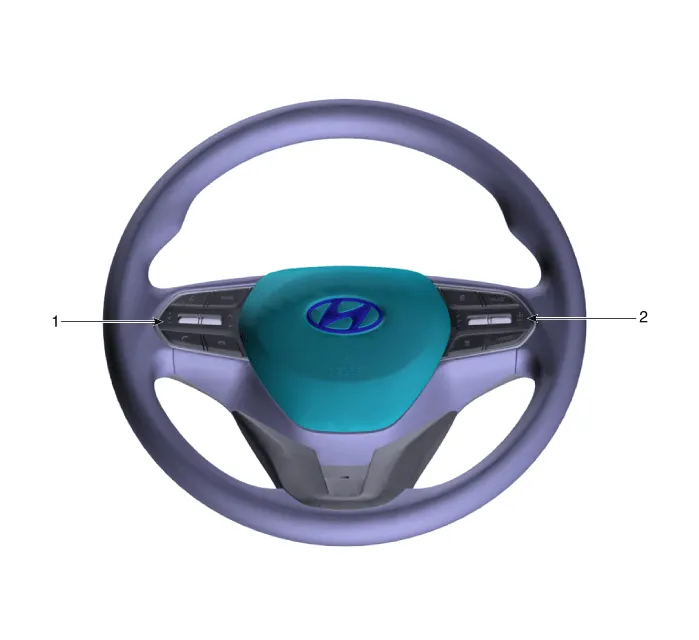

| Components |
| 1. Remote control
switch (Audio swtich) |
2. Remote control
switch (Cruise control switch) |
System Block Diagram Component Parts And Function Outline Component part Function Vehicle-speed sensor, ESP/ABS Control Module Converts vehicle speed to pulse.
Circuit Diagram [Trip/Cruise/Smart Cruise]
