Hyundai Santa Fe (TM): Cooling System / Radiator. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Cooling System / Radiator. Repair procedures

Removal and Installation

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the cooling fan.
(Refer to Cooling System - "Cooling Fan")
2.

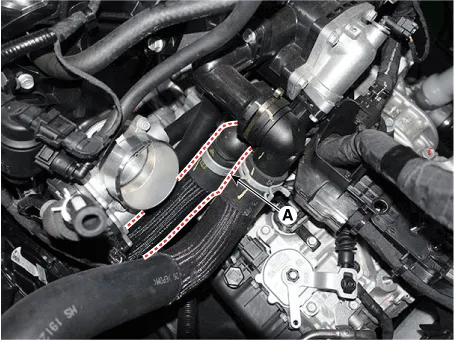

Disconnect the radiator lower hose (A) from inlet fitting.
3.

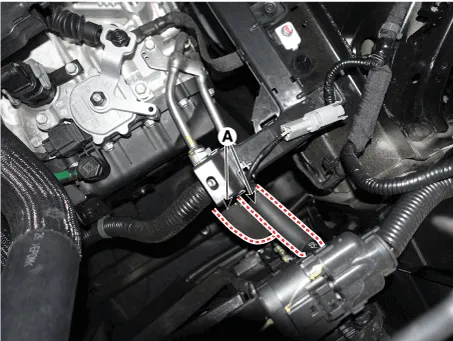

Disconnect the ATF cooler hoses (A).
4.
Pull the raditor upward and remove it from engine room.
5.
Install in the reverse order of removal.
6.
Fill the radiator with coolant and check for leaks.
