Hyundai Santa Fe (TM): Blower / Blower Resistor (Manual). Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Blower / Blower Resistor (Manual). Repair procedures

Inspection

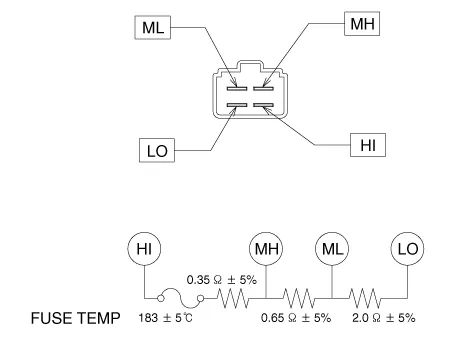

1.	Measure the resistance between the terminals.

2.	The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the glove box. (Refer to Body - "Glove Box")

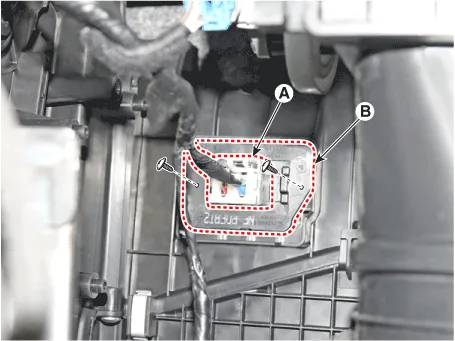

3.	Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.

4.	Install in the reverse order of removal.
