Hyundai Santa Fe (TM): Charging System / Components and components location

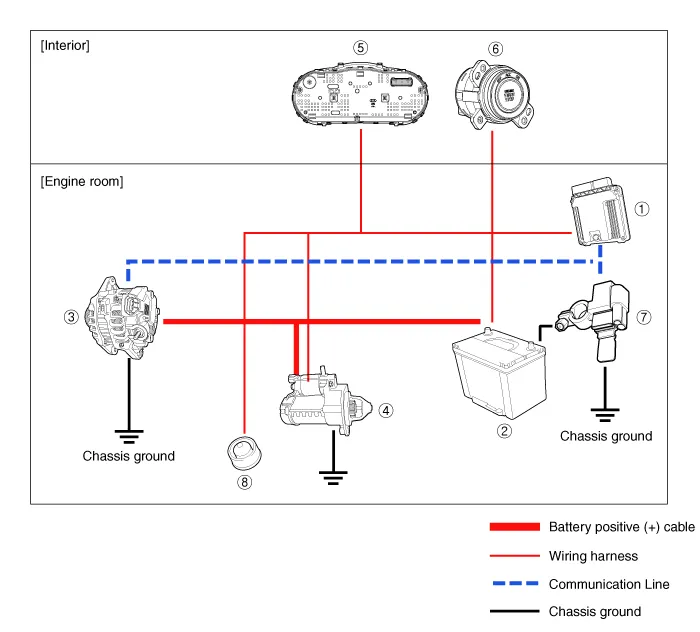

| Components |
| 1. ECM 2. Battery 3. Alternator 4. Starter |
5. Instrument
Cluster 6. Ignition switch or start/stop button 7. Battery sensor 8. Hood switch |
Description The charging system includes a battery, an alternator with a built-in regulator, and the charging indicator light and wire.
Troubleshooting • Be careful not to short-circuit the wiring by the body or other wirings.
