Description and operation

Description

Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.

This system is a supplemental system that shows behind the vehicle through the H/UNIT or the ECM (Reverse Display Room Mirror) mirror while backing-up.

This system is a supplementary function only. It is the responsibility of the driver or always check the inside/ outside rearview mirror and the area behind the vehicle before and while backing up because there is a dead zone that can't see through the camera.

Components and components location

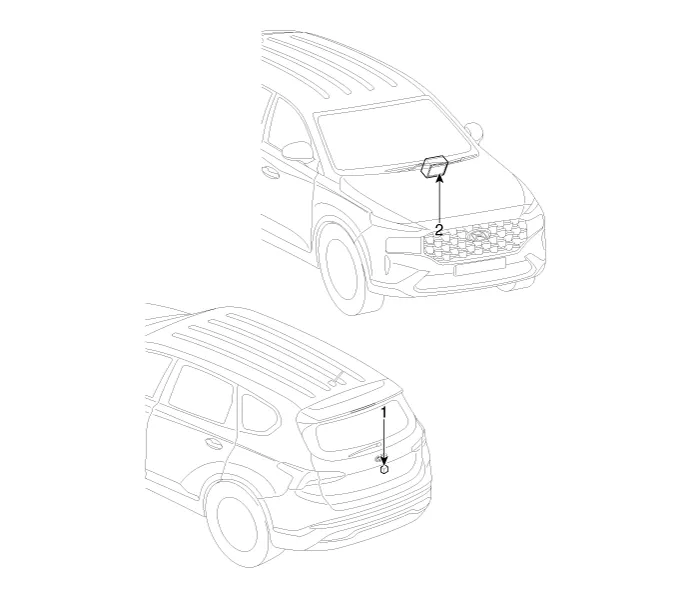

Component Location

1. Rear view camera

2. H/UNIT

Schematic diagrams

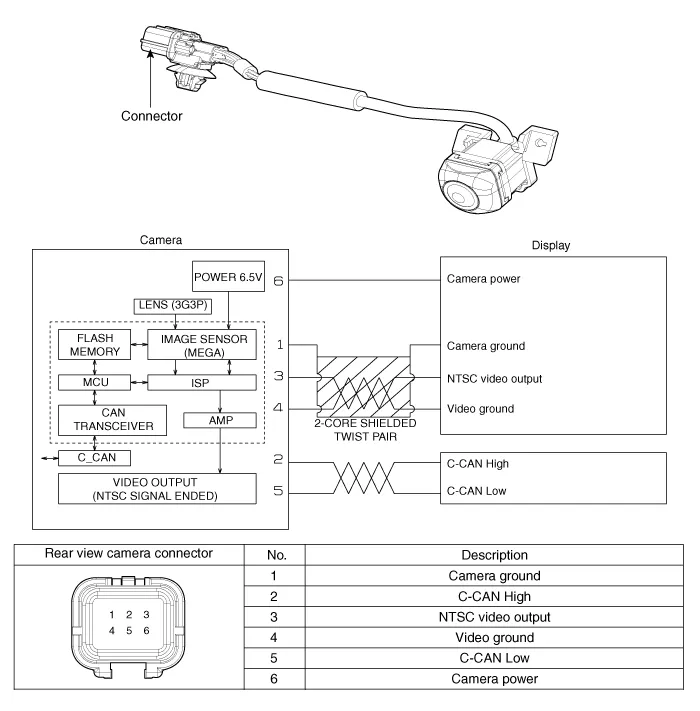

Circuit Diagram

Repair procedures

Removal

1.	Remove the tailgate trim. (Refer to Body - "Tailgate Trim")

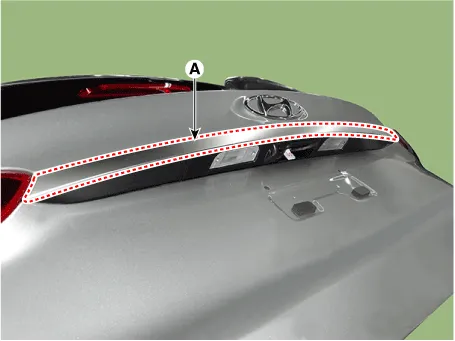

2.	Remove the tailgate ganish (A).

3.	Remove the tailgate switch assembly.

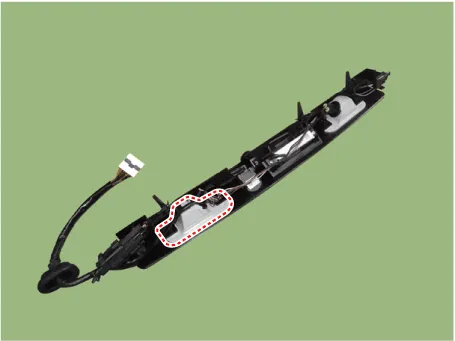

4.	Remove the license lamp LH.

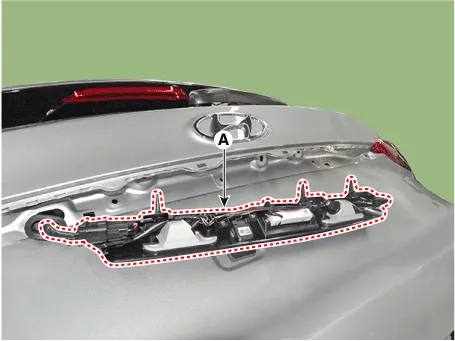

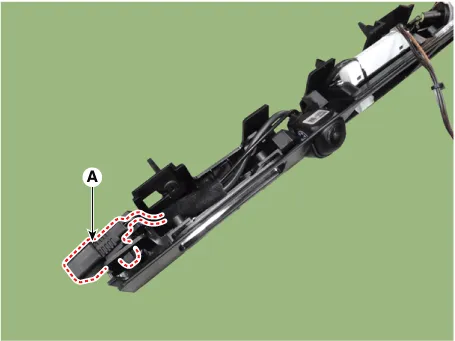

5.	Disconnector the connector (A) and then remove the rear view camera.

Installation

1.	Install the rear view camera.

2.	Install the and tailgate trim.
