Hyundai Santa Fe (TM): Interior Trim / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Interior Trim / Components and components location

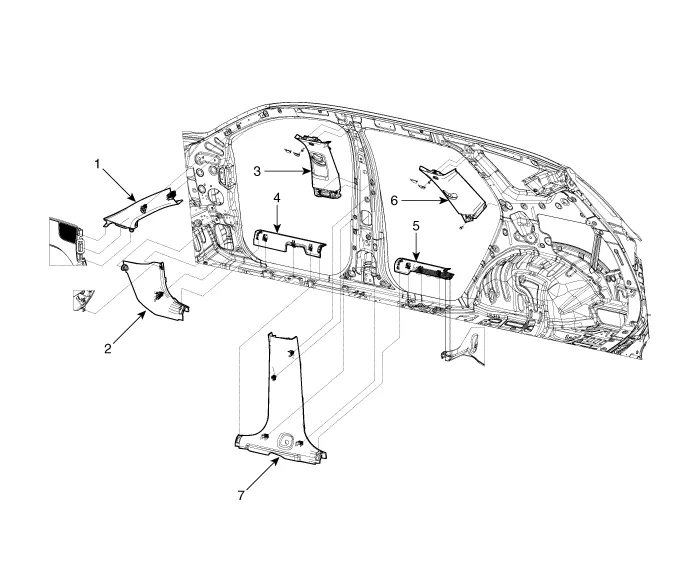

| Components |
| 1. Front pillar
trim 2. Cowl side trim 3. Center pillar upper trim 4. Front door scuff trim |
5. Rear door
scuff trim 6. Rear pillar trim 7. Center pillar lower trim |
Component Location 1. Front Door Scuff Trim 2. Rear Door Scuff Trim
