| Replacement |
|
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |

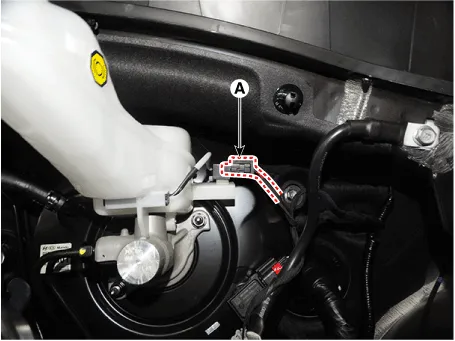

Disconnect the brake fluid level sensor connector (A).
|
| 3. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
|
| 4. |

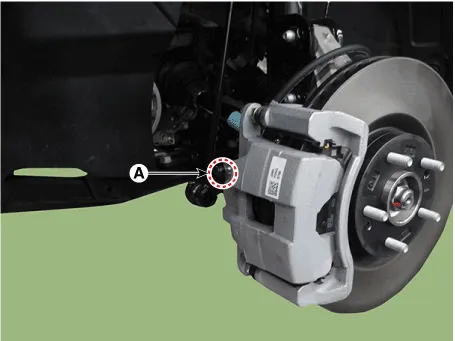

Loosen the bleed screw (A) and depress the brake pedal repeatedly several
times until the brake fluid reaches the caliper cylinder.
[Front]
[Rear]
|
| 5. |
Retighten the bleed screw and then make sure the brake fluid in the
reservoir is at the MAX (upper) level line.
|
| 6. |

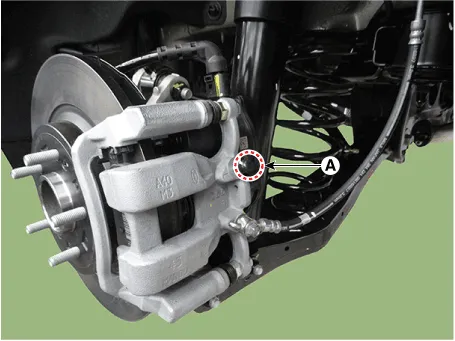

Loosen the right-rear brake bleed screw (A) to allow air to escape from
the system. Then tighten the bleed screw securely.
[Front]
[Rear]
|
| 7. |
Re-tighten the bleed screw.
|
| 8. |
Have an assistant press the brake pedal several times to pressurize
it and keep it pressed.
|
| 9. |
Pump the brake pedal several times, and then loosen the bleeder screw
until fluid starts to run out without bubbles. Then close the bleeder
screw.
[Front]
[Rear]
|
| 10. |
Repeat the procedure for wheel in the sequence until air bubbles no
longer appear in the fluid.
|
| 11. |
Connect the negative (-) cable.
|
| 12. |
Connect the brake fluid level sensor.
|
Specification Fluid Type DOT 4 Reservoir Quantity (cc) MAX LEVEL A + B + C + D 493 ± 20 ON LEVEL B + C + D 206 ± 20 MIN LEVEL - 167 PARTIAL LEVEL C Pri : 63 D Sec : 49 CLUTCH LEVEL E -
