Hyundai Santa Fe (TM): Brake System / Brake Pedal. Components and components location

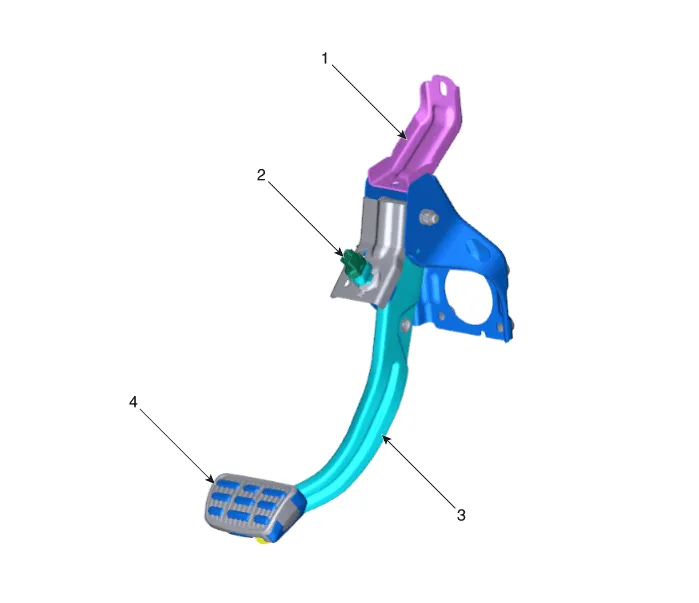

| Components |
| 1. Brake member
assembly 2. Stop lamp switch |
3. Brake pedal
arm assembly 4. Brake pedal pad |
Replacement • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel.
