Rear Spoiler. Components and components location

Component Location

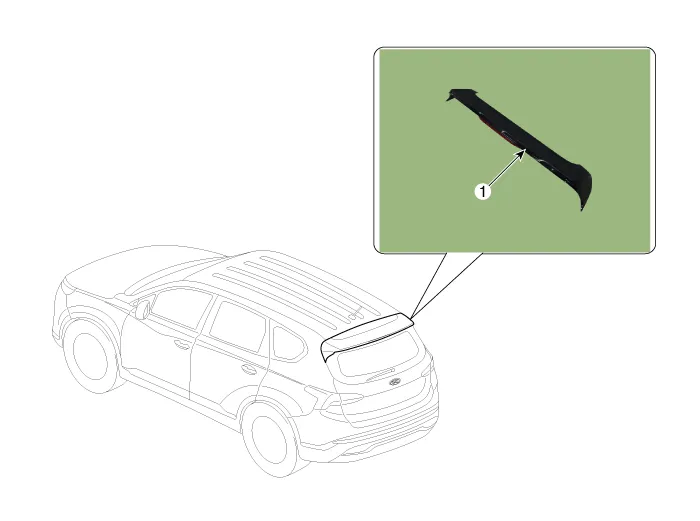

1. Rear Spoiler

Rear Spoiler. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

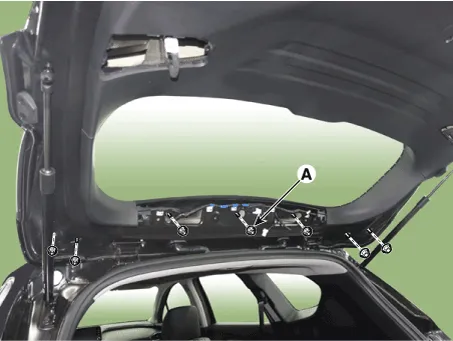

Remove the tailgate upper trim.
(Refer to Tailgate - "Liftgate Trim")
2.

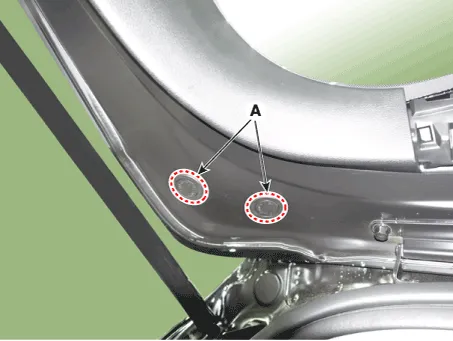

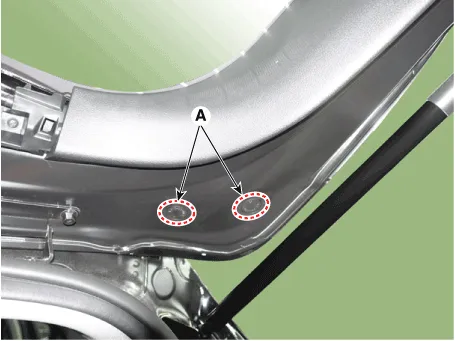

Remove the rear spoiler plug hole (A).
[LH]

[RH]
3.

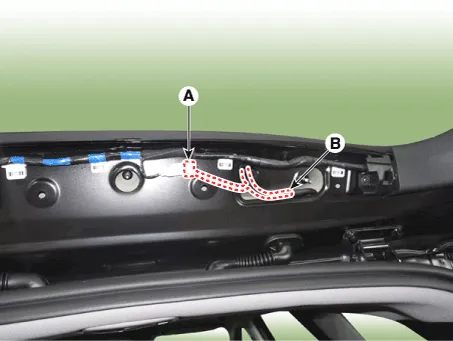

Separate the rear stop lamp connector (A) and rear washer nozzle (B).
4.
Loosen the mounting nuts (A) and remove the rear spoiler (B).
Tightening torque :
2.4 - 3.1 N.m (0.2 - 0.3 kgf.m, 1.7 - 2.3 lb-ft)

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).

Fender Garnish. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

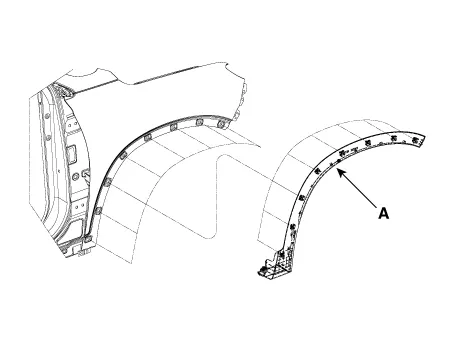

Using a screwdriver or remover, remove the fender garnish (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Quarter Garnish. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

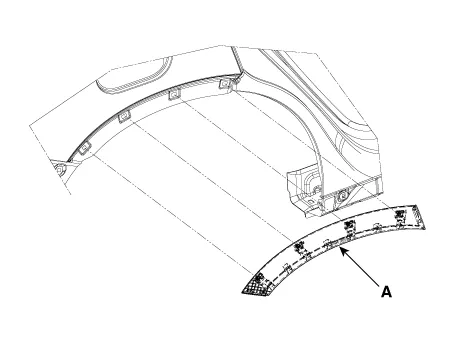

Using a screwdriver or remover, remove the quarter garnish (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Side Sill Molding. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

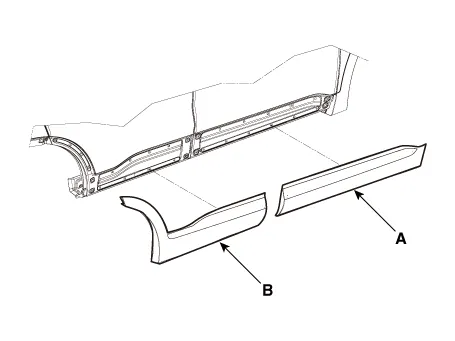

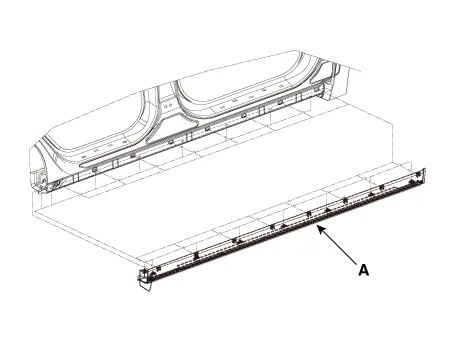

Using a remover, remove the side sill molding (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Roof Side Molding. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.

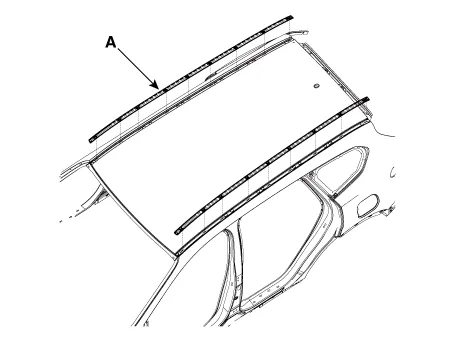

Using a screwdriver or remover, remove the roof side molding (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Roof Rack. Components and components location

Components Location

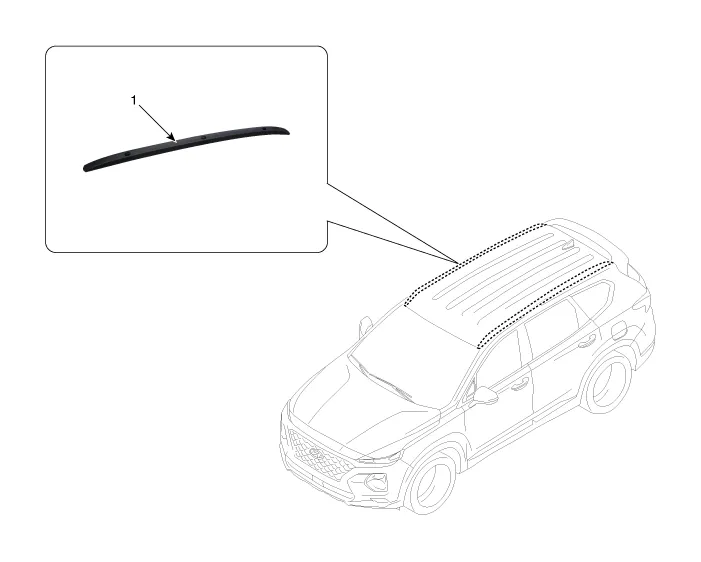

1. Roof rack assembly

Roof Rack. Repair procedures

Removal

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

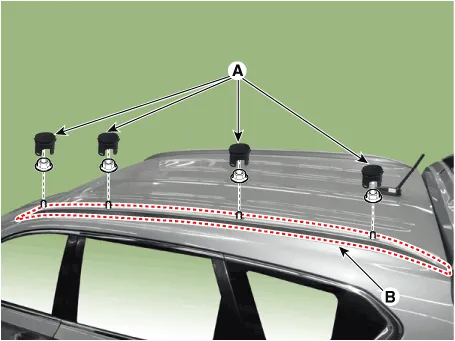

Remove the roof rack side cap (A).
2.
Loosen the nuts and remove the roof rack assembly (B).
Installation
1.
Install the roof rack assembly (B).
Tightening torque :
3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb-ft)

•

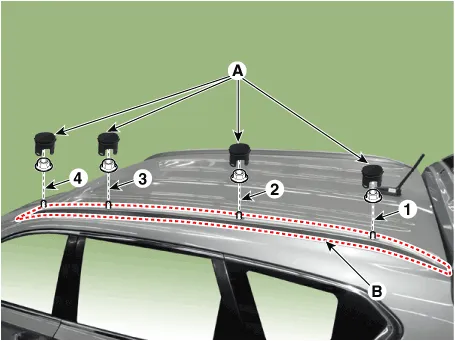

Tighten mounting nuts as â‘  - â‘¢ order.
2.
Install the roof rack side cap (A).

Front Wheel Guard. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front tire.
2.

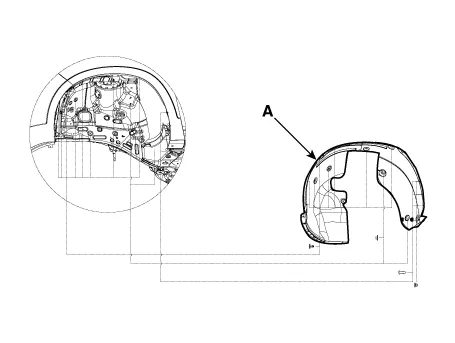

Loosen the mounting clip,nuts and screws , and remove the front wheel guard (A).
3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Rear Wheel Guard. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the rear tire.
2.

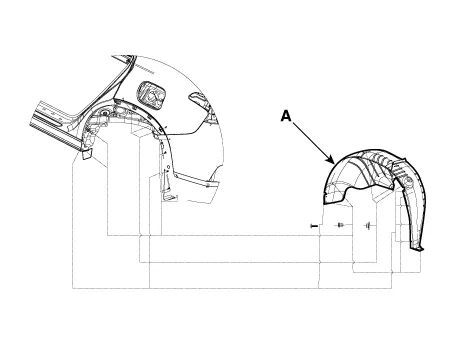

Loosen the mounting clip and remove the rear wheel guard (A).
3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

Door Garnish. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Using a remover or screwdriver and remove the front door garnish (A) and rear door garnish (B).
2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Components and components location Components 1. Rear door window glass 2. Rear door window glass run assembly 3.

    Components and components location Component 1. Mechanism rail assembly 2. Center cover assembly 3. Roller blind motor 4.
