Hyundai Santa Fe (TM): Air conditioning System / Refrigerant Line. Components and components location

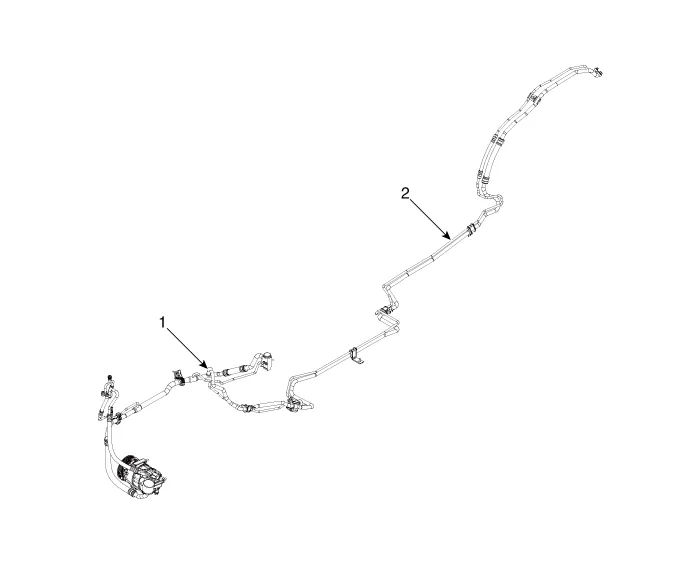

| Components |
| 1. Front Suction
& Liquid Pipe Assembly |
2. Rear Suction
& Liquid Pipe Assembly |
Oil Specification 1. The R-134a or R-1234yf system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil.
Replacement [Front suction & Liquid pipe assembly] 1. If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.
