Hyundai Santa Fe (TM): Cooling System / Water Temperature Control Assembly. Repair procedures
| Removal and Installation |
|
| 1. |
Disconnect the battery negative terminal.
|
| 2. |
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 3. |
Drain the coolant.
(Refer to Cooling System - "Coolant")
|
| 4. |
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
|
| 5. |
Remove the battery.
(Refer to Engine Electrical System - "Battery")
|
| 6. |
Remove the battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 7. |

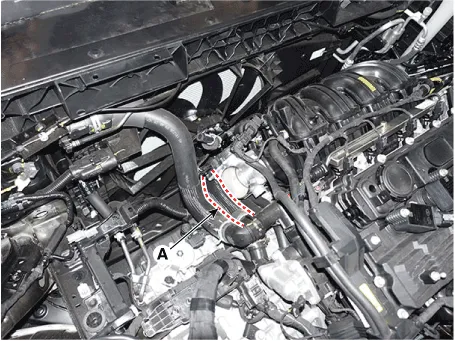

Disconnect the radiator upper hose (A).
|
| 8. |

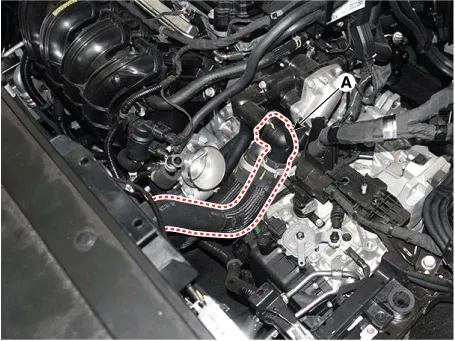

Disconnect the radiator lower hose (A).
|
| 9. |

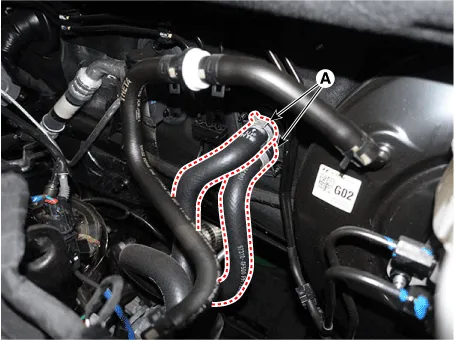

Disconnect the heater hoses (A).
|
| 10. |

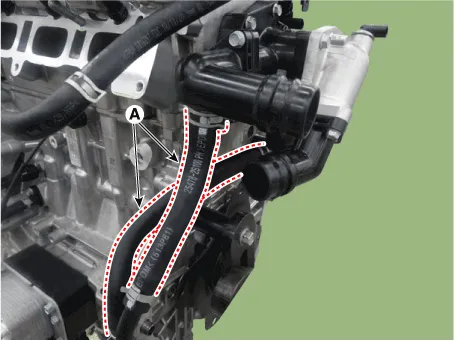

Disconnect the oil cooler hoses (A).
|
| 11. |

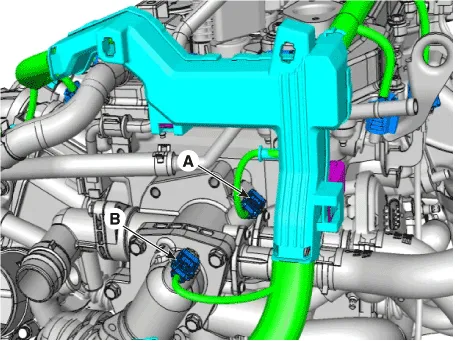

Disconnect the engine coolant temperature sensor connector (ECTS) (A)
and electric thermostat connector (B).
|
| 12. |

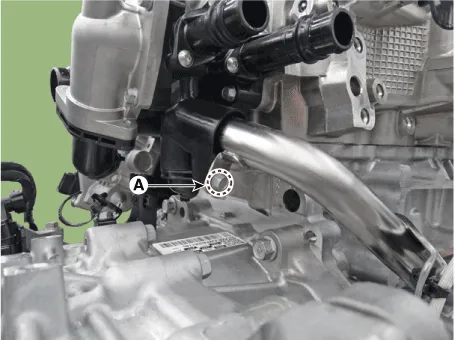

Remove the water pipe mounting bolt (A).
|
| 13. |

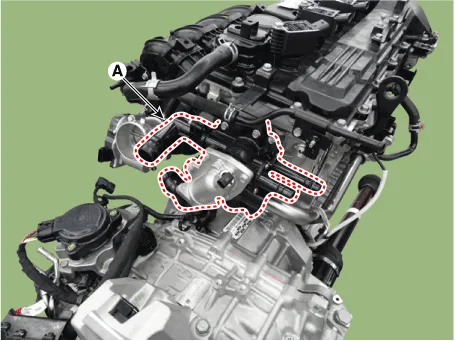

Remove the water temperature control assembly (A).
|
| 14. |
Install in the reverse order of removal.
|
| 15. |
Fill with engine coolant.
(Refer to Cooling System - "Coolant")
|
| 16. |
Start engine and check for leaks.
|
