Hyundai Santa Fe (TM): Seat Electrical / Walk-in Switch. Repair procedures
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Seat Electrical / Walk-in Switch. Repair procedures
| Removal |
Actuator
| 1. |
Remove the rear seat.
(Body - "Rear Seat Assembly")
|
| 2. |
Disconnect the walk in actuator connector and then remove the actuator.
|
| 3. |

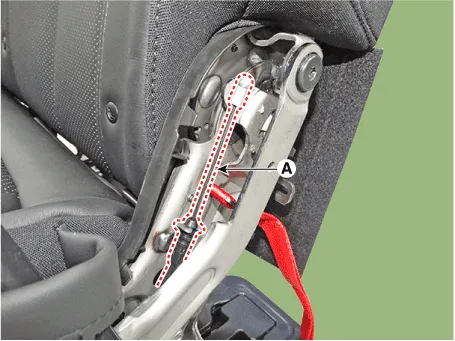

Remove the cable (A) and then separate the walk in actuator.
|
Upper Walk in Swtich
| 1. |

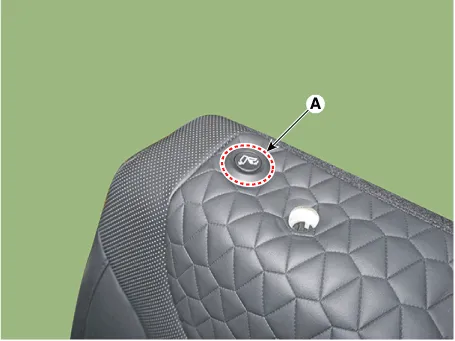

Remove the rear seat walk in switch (A).
|
| 2. |

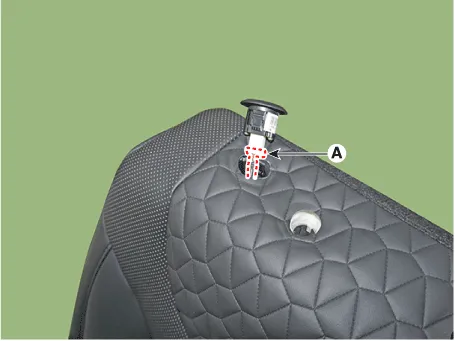

Remove the walk in switch by using a flat-head screwdriver and then
disconnect the walk in switch connector (A).
|
Lower Walk in Switch
| 1. |

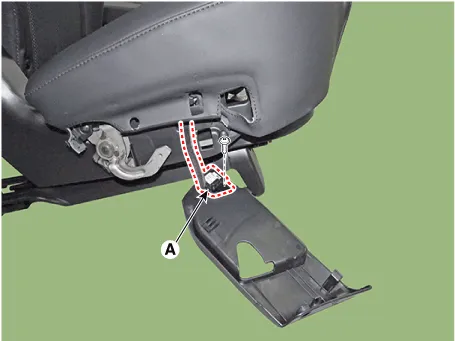

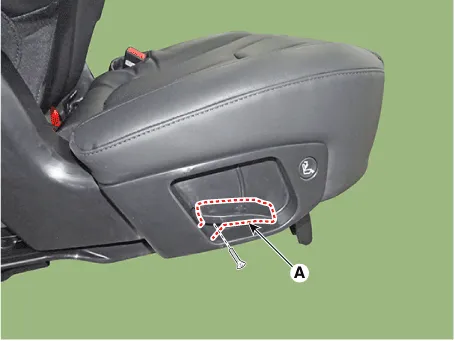

Loosen the screw and then remove the rear seat recliner knob (A).
|
| 2. |

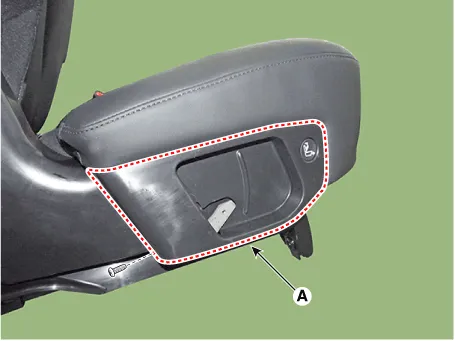

Loosen the screw and then remove the rear seat recliner cover (A).
|
| 3. |
Remove the walk in swtich (A) after loosening the connector.
|
Luggage
| 1. |
Remove the luggage side trim.
(Refer to Body - "Luggage Side Trim")
|
| 2. |

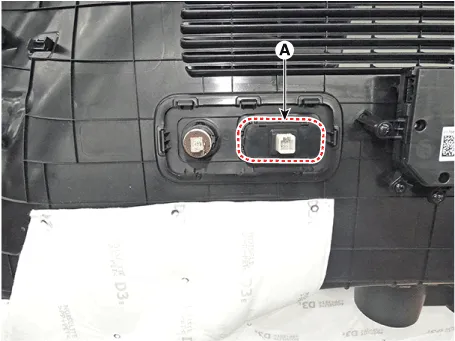

Remove the luggage remote folding switch (A).
|
Circuit Diagram
