Hyundai Santa Fe (TM): Engine Control System / Variable Intake Solenoid (VIS) Valve. Schematic diagrams

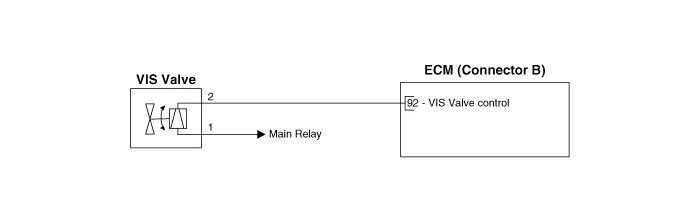

| Circuit Diagram |
Specification Item Specification Coil resistance (Ω) 30.0 - 35.0 [20°C (68°F)]
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector.
