Hyundai Santa Fe (TM): Audio / USB Jack. Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Audio / USB Jack. Description and operation

Description

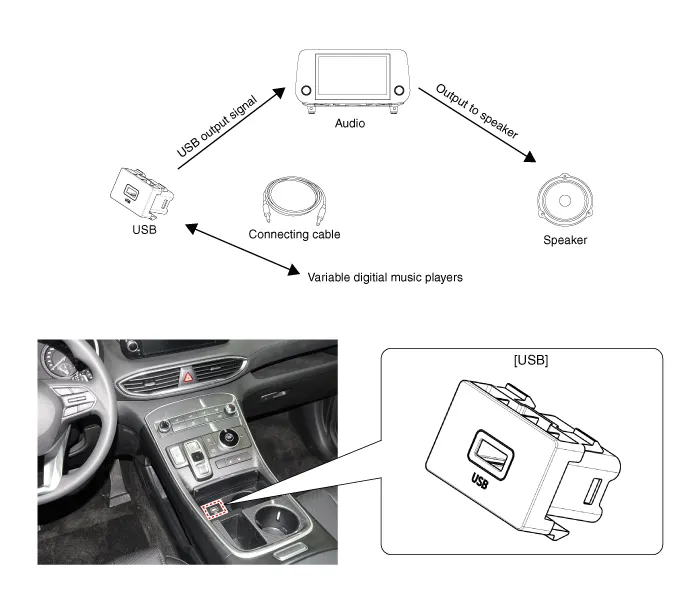

The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player and etc., through the vehicle's sound system when it is linked to this jack.
If sound distortion occurs it may be due to a mismatch of specifications between units.

    Inspection 1. Check for resistance between terminals in left switch position. [Audio/Bluetooth] Switch Connector terminal Resistance (± 3%) SEEK Up 1 - 6 430 Ω SEEK Down 1 - 6 1.

    Circuit Diagram
