Hyundai Santa Fe (TM): Audio / USB Jack. Schematic diagrams

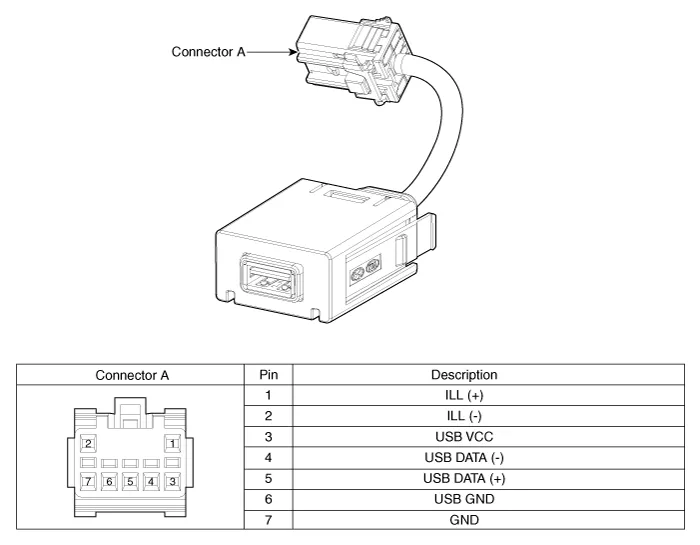

| Circuit Diagram |
Description The AUX, iPod and USB JACK on the center console is for customers who like to listen to external portable music players like the MP3, iPod, earphone, USB memory stick, CD player and etc.
Removal • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
