Hyundai Santa Fe (TM): Body (Interior and Exterior) / Trunk Trim

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Trunk Trim

Components and components location

Components

[5 seat vehicle]

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Cargo screen
5. Luggage floor tray

6. Luggage board
7. Luggage met
8. Luggage floor box rear trim
9. Car warning triangle assembly

[7 seat vehicle]

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Rear transverse trim
4. Cargo screen

5. Luggage met
6. Luggage floor box rear trim
7. Fire extinguisher
8. Car warning triangle assembly

Rear Transverse Trim. Components and components location

Component Location

1. Rear Transverse Trim

Rear Transverse Trim. Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

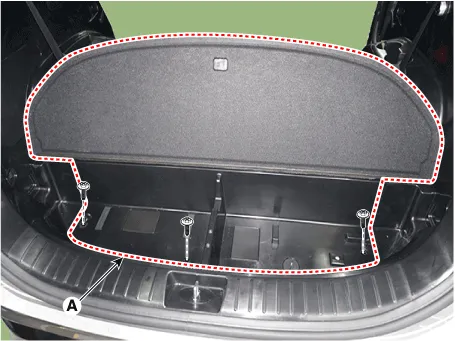

1.	Loosen the mounting screws and remove the luggage floor box (A).

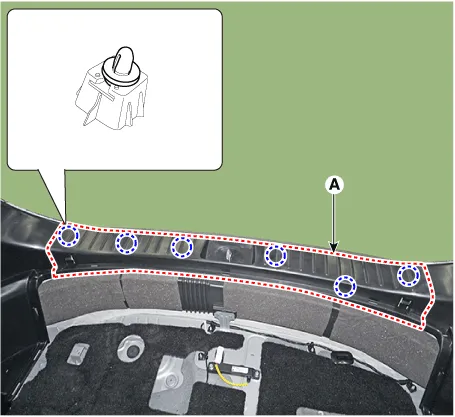

2.	Loosen the mounting clips and remove the rear transverse trim (A).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).

Luggage Side Trim. Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the third row seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the rear door body side weatherstrip. (Refer to Rear DooR -"Rear Door Body Side Weatherstrip")

3.	Remove the tailgate weatherstrip. (Refer To Tailgate -"Tailgate Weatherstrip")

4.	Remove the rear door scuff trim. (Refer to Interior Trim -"Door Scuff Trim")

5.	Remove the Rear transverse trim. (Refer to Interior Trim -"Rear Transverse Trim")

6.	Push the second row seat towards the front of the vehicle as far as possible.

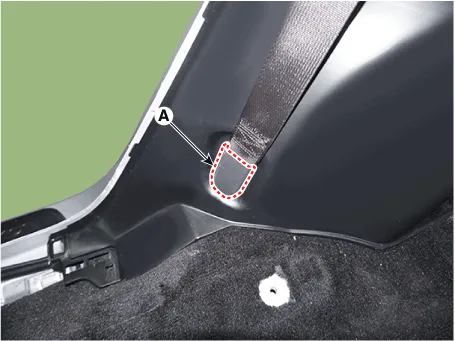

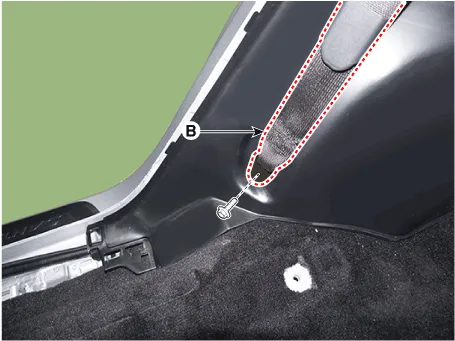

7.	Remove the cover (A) and loosen the mounting bolt and remove the second row seat belt lower anchor (B).

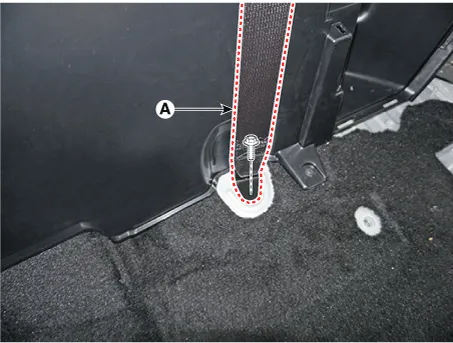

8.	Loosen the mounting bolt and remove the third row seat belt lower anchor (A).

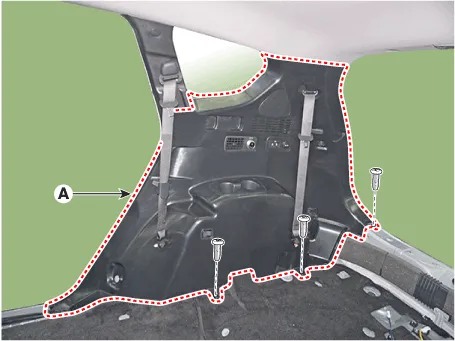

9.	Loosen the mounting screws and remove the luggage side trim (A).

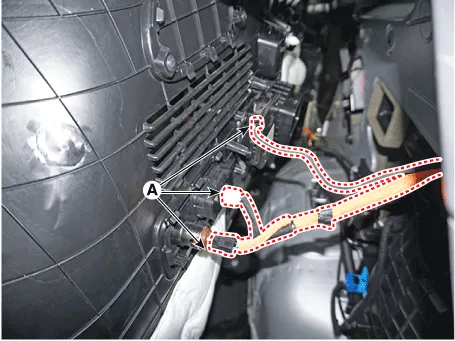

10.	Press the lock pin and separate the various connector (A).

11.

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
