Hyundai Santa Fe (TM): Rear Corner Radar System / Components and components location

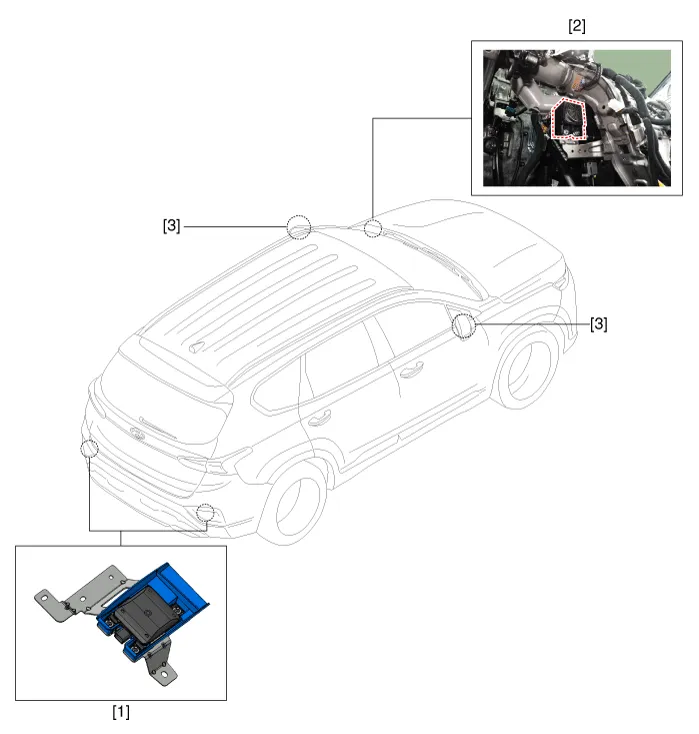

| Components |
| 1. Rear corner
radar unit 2. Speaker (Cluster) |
3. Warning indicator |
Description Rear Corner Radar is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm.
Diagnosis with Diagnostic tool 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
