Hyundai Santa Fe (TM): Parking Safety / Surround View Monitor (SVM)

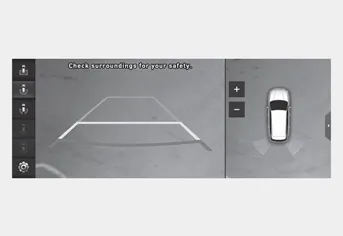

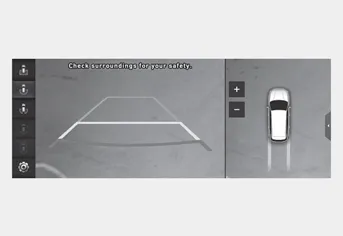

Surround View Monitor can help assist in parking using the cameras installed on the vehicle and displays images around the vehicle through the infotainment system screen.

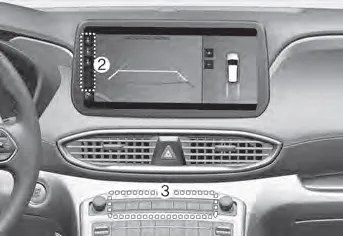

- Parking Assist View function helps the driver to see the surroundings of the vehicle in a parking situation in various view modes.
Camera
[1] : SVM-front view camera, [2],[3] : SVM-side view camera (under the side view mirror), [4] : SVM-rear view camera
Refer to the picture above for the detailed location of the cameras.
System malfunction When Rear View Monitor is not working properly, or the screen flickers, or the camera image does not display normally, we recommend that the system be inspected by an authorized HYUNDAI dealer.

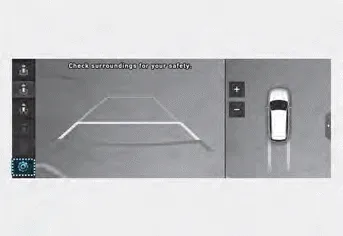

Camera settings You can change Surround View Monitor ‘Display Contents’ or ‘Display Settings’ by touching the setup icon ( ) on the screen while Surround View Monitor is operating, or selecting ‘Driver Assistance → Parking Safety → Camera Settings’ from the Settings menu while the engine is on.
