Hyundai Santa Fe (TM): ETC (Electronic Throttle Control) System / Repair procedures
Throttle Position Sensor (TPS)
|
1. |
Connect the diagnostic tool on the Data Link Connector (DLC).
|
|
2. |
Start the engine and measure the output voltage of TPS 1 and 2 at C.T.
and W.O.T.
Throttle Angle
|
Output Voltage (V)
|
TPS 1
|
TPS 2
|
C.T
|
0.3 - 0.9
|
4.2 - 5.0
|
W.O.T
|
1.5 - 3.0
|
3.3 - 3.8
|
|
|
3. |
Turn the ignition switch OFF and disconnect the scantool from the DLC.
|
|
4. |
Disconnect the ETC module connector and measure the resistance between
the ETC module terminals 1 and 2.
|
Specification : Refer to "Specification"
|
|
ETC Motor
|
1. |
Turn the ignition switch OFF.
|
|
2. |
Disconnect the ETC module connector.
|
|
3. |
Measure resistance between the ETC module terminals 3 and 6.
|
|
4. |
Check that the resistance is within the specification.
|
Specification : Refer to "Specification"
|
|
|
1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
|
|
2. |
Remove the resonator and the air intake hose.
(Refer to Engine Mechanical System - "Intake Manifold")
|
|
3. |

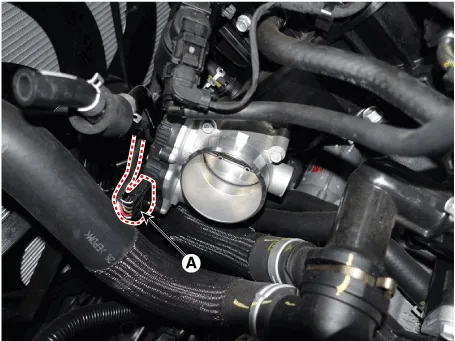

Disconnect the ETC module connector (A).
|
|
4. |

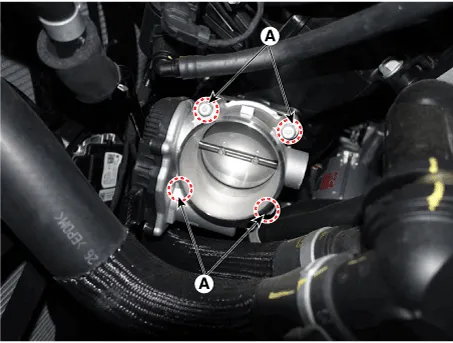

Remove the installation bolts (A), and then remove the ETC module from
the engine.
|
Tightening Torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
|
|
| •
|
Install the component with the specified torques.
|
| •
|
Note that internal damage may occur when the component is dropped.
In this case, use it after inspecting.
|
|
|
1. |
Installation is reverse of removal.
|
Schematic Diagram
Circuit Diagram
Harness Connector
Description
Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and
is installed on the surge tank. It senses absolute pressure of the surge tank
and transfers the analog signal proportional to the pressure to the ECM.
