Hyundai Santa Fe (TM): ESP(Electronic Stability Program) System / Rear Wheel Speed Sensor. Components and components location
| Components |

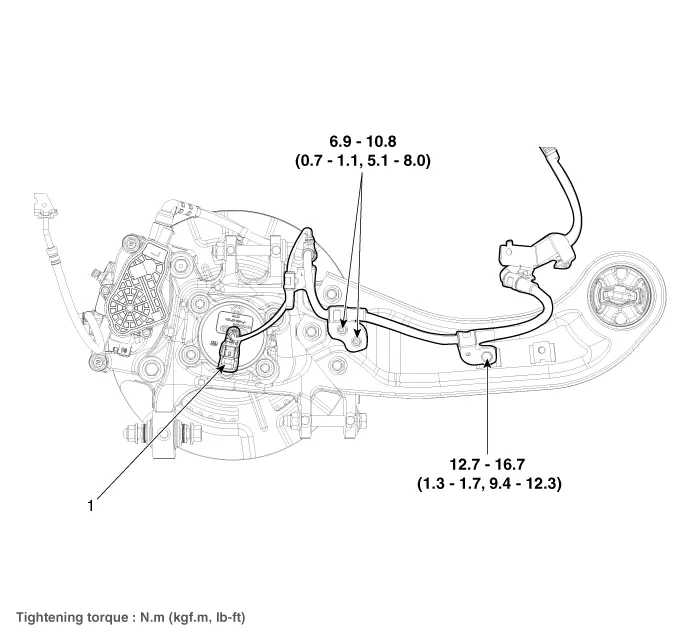

| 1. Rear wheel
speed sensor |

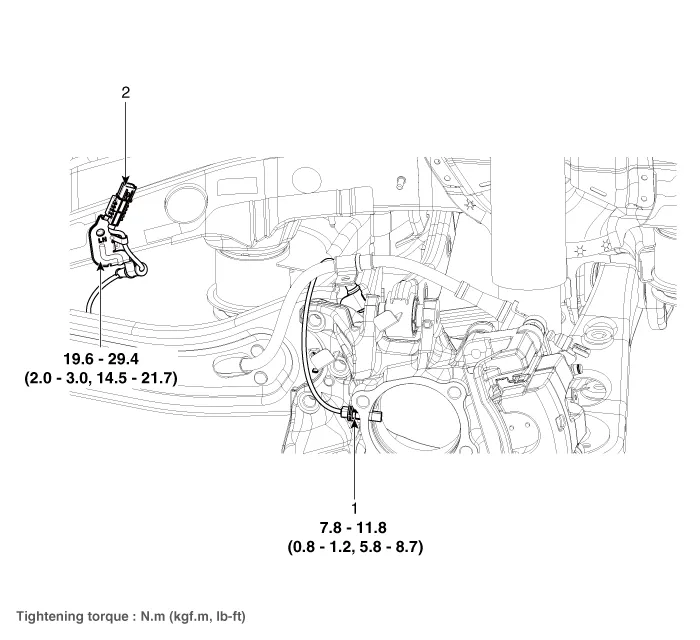

| 1. Rear wheel
speed sensor |
2. Rear wheel
speed sensor connector |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
