Hyundai Santa Fe (TM): Air conditioning System / Components and components location
| Component Location Index |

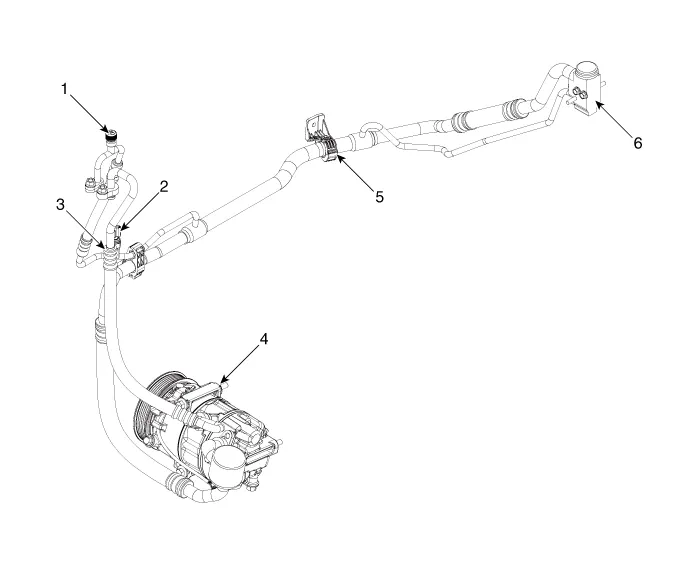

| 1. Service port
(High pressure) 2. A/C pressure transducer (APT) 3. Service port (Low pressure) |
4. Compressor 5. Suction & Liquid pipe assembly 6. Expansion valve |

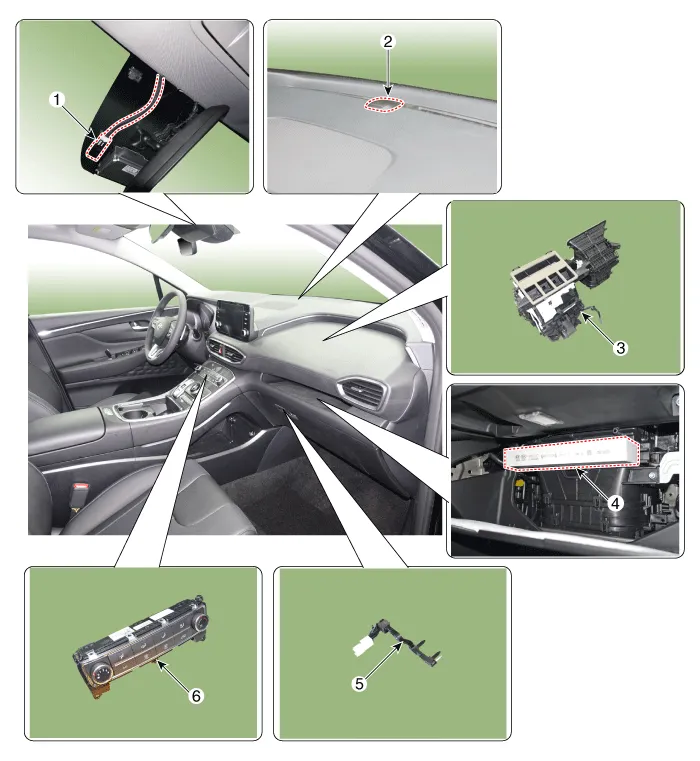

| 1. Auto defogging
sensor 2. Photo Sensor 3. Heater & Blower unit |
4. Air filter 5. Evaporator Temperature Sensor 6. Heater & A/C control unit |
Refrigeration Cycle
Refrigerant System Service Basics (R-134a) Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system.
