Hyundai Santa Fe (TM): Rear Seat / Rear Seat Frame Assembly. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Frame Assembly. Components and components location

Component Location

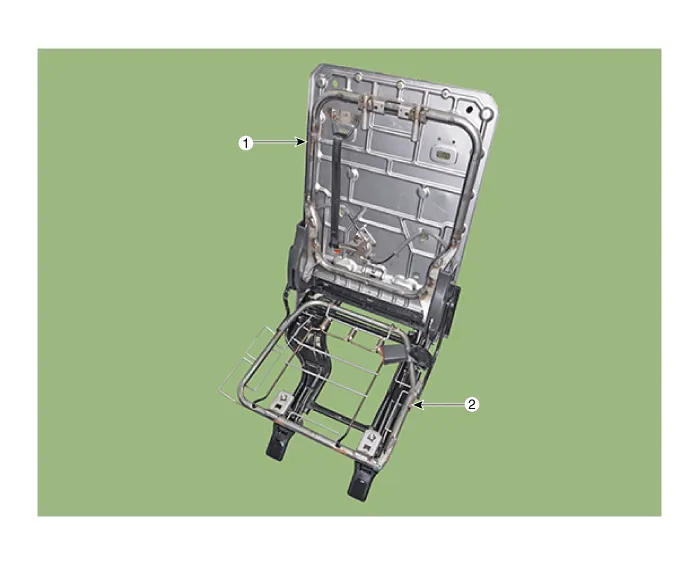

[Second row seat assembly]
(LH)

1. Rear seat back frame assembly
 2. Rear seat cushion frame assembly

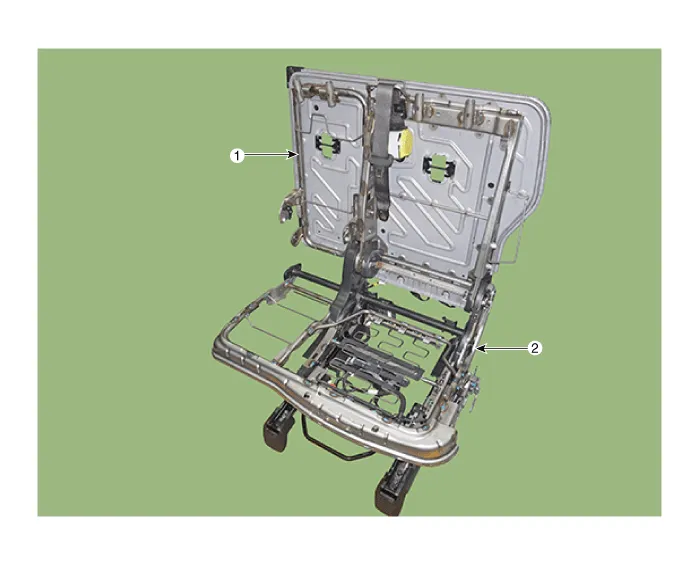

(RH)

1. Rear seat back frame assembly
 2. Rear seat cushion frame assembly

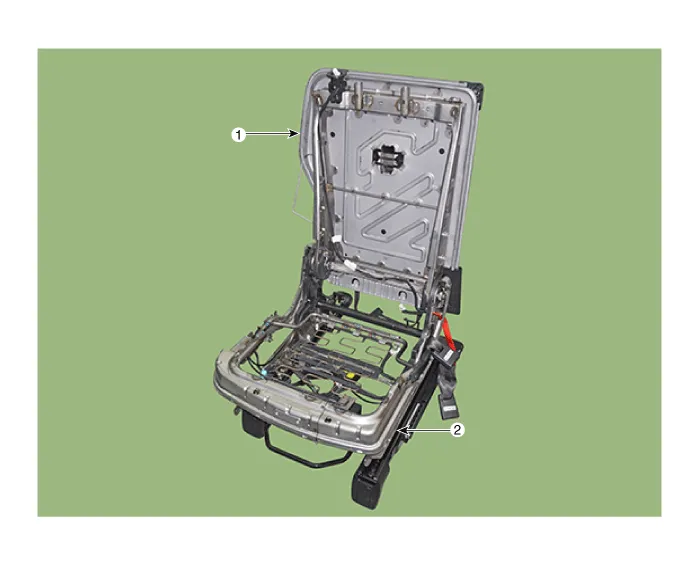

[Third row seat assembly]

1. Rear seat back frame assembly
 2. Rear seat cushion frame assembly

    Replacement [Second row seat assembly] (LH)    • Put on gloves to protect your hands.

    Replacement [Second row seat assembly] (LH)    • Put on gloves to protect your hands.
