Hyundai Santa Fe (TM): Rear Seat / Rear Seat Cushion Cover. Repair procedures
[Second row seat assembly]
| •
|
Put on gloves to protect your hands.
|
|
| •
|
When prying with a flat-tip screwdriver, wrap it with protective
tape, and apply protective tape around the related parts, to
prevent damage.
|
| •
|
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the second row seat assembly [LH].
(Refer to Rear Seat - "Rear Seat Assembly")
|
|
2. |

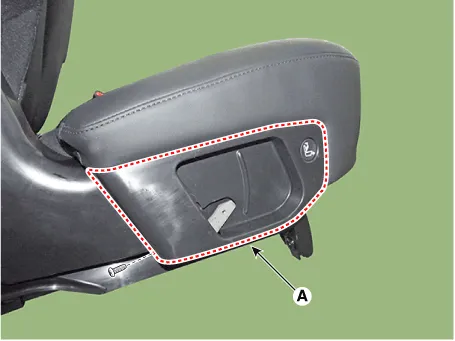

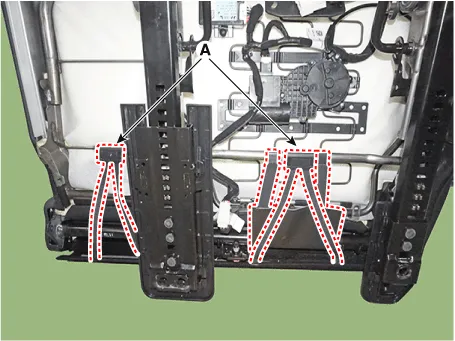

Remove the protector (A) located in the bottom side of the rear seat
cushion.
|
|
3. |

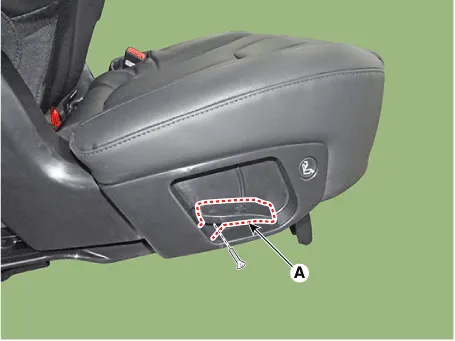

After loosening the mounting screw, then remove the rear seat recliner
knob (A).
|
|
4. |

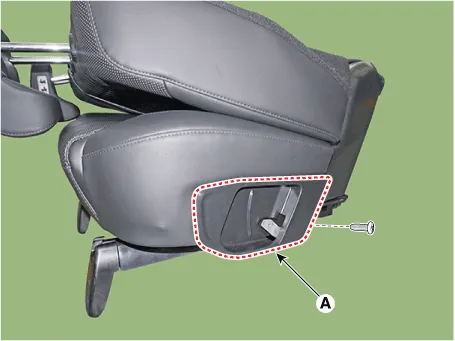

After loosening the mounting screw, then remove the rear seat recliner
cover (A).
|
|
5. |
Remove the protector (A) located in the side part of the rear seat cushion.
|
|
6. |

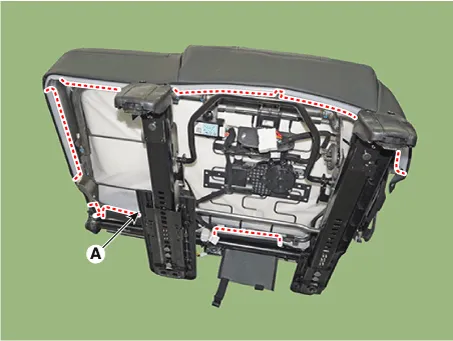

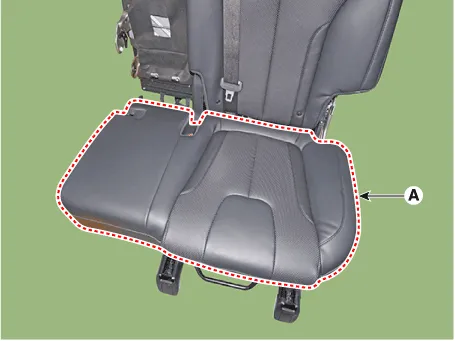

Remove the rear seat cushion cover (A) from the rear seat cushion frame.
|
|
7. |

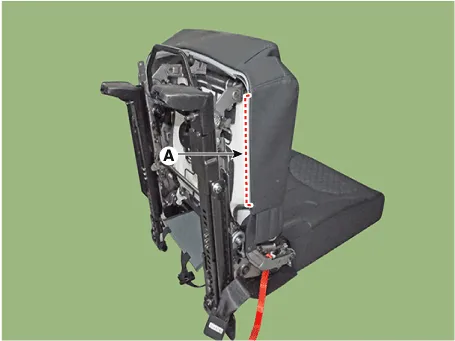

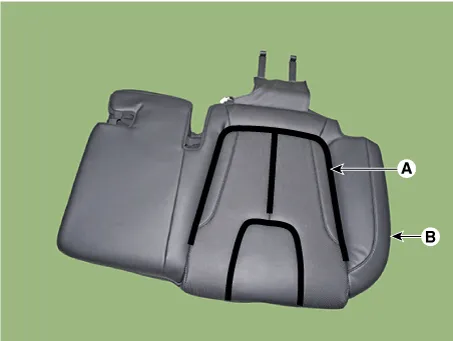

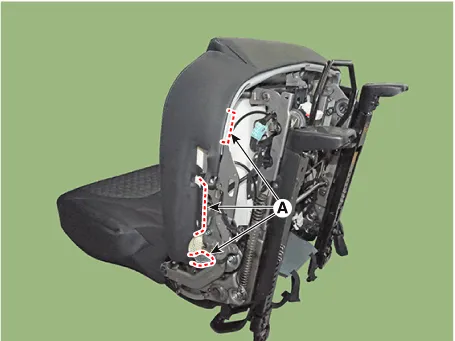

After removing the velcro tape (A) on the rear of seat cushion and remove
the rear seat cushion cover (B).
|
|
8. |
Install in the reverse order of removal.
|
• |
Replace any damaged clips.
|
|
|
| •
|
Put on gloves to protect your hands.
|
|
| •
|
When prying with a flat-tip screwdriver, wrap it with protective
tape, and apply protective tape around the related parts, to
prevent damage.
|
| •
|
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the second row seat assembly [RH].
(Refer to Rear Seat - "Rear Seat Assembly")
|
|
2. |

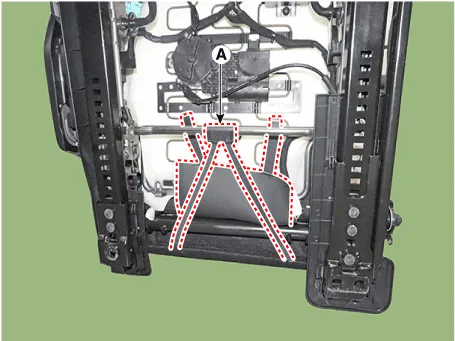

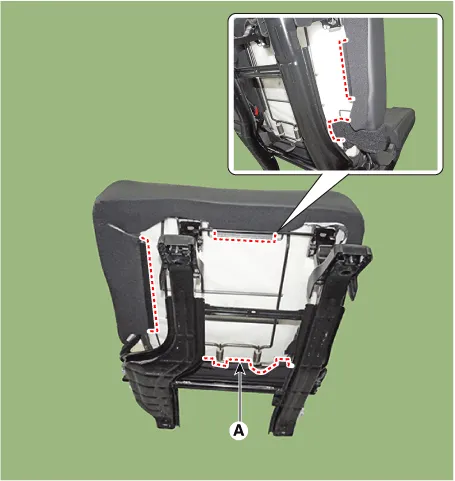

Remove the protector (A) located in the bottom side of the rear seat
cushion.
|
|
3. |
After loosening the mounting screw, then remove the rear seat slide
knob (A).
|
|
4. |

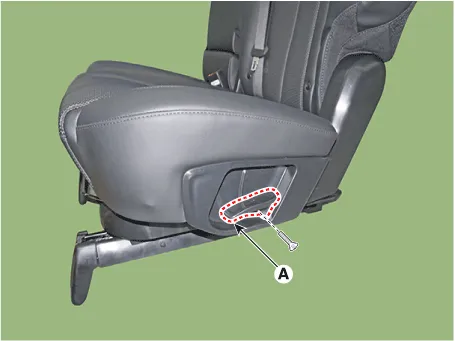

After loosening the mounting screw, then remove the rear seat slide
outer cover (A).
|
|
5. |

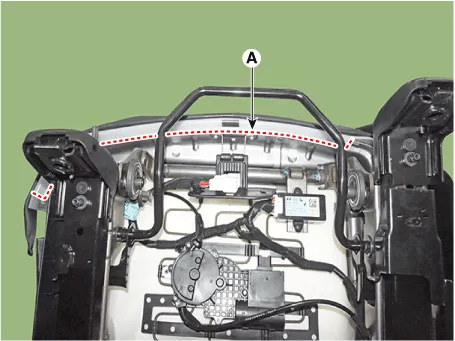

Remove the seat protector (A) from the rear seat cusion frame.
[Upper]
[Lower]
[LH]
[RH]
|
|
6. |

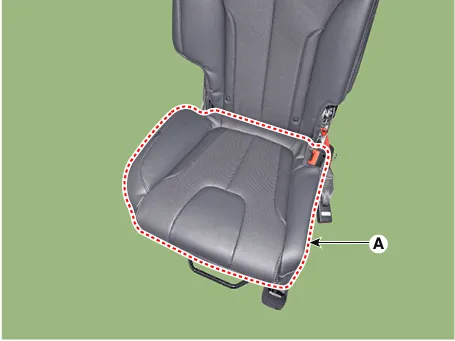

Remove the rear seat cushion cover (A) from the rear seat cushion frame.
|
|
7. |

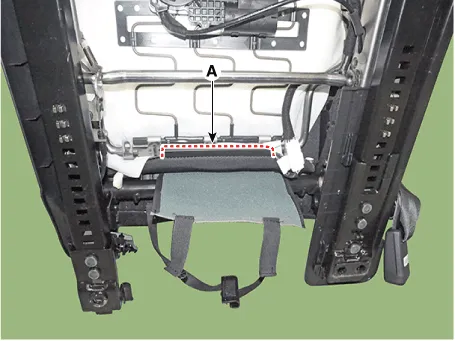

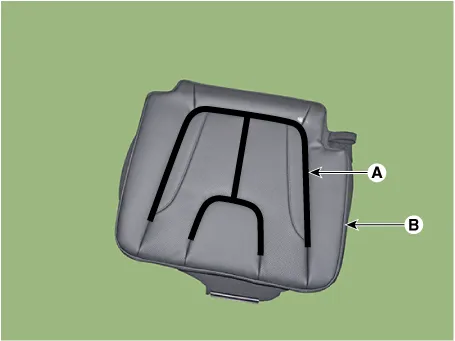

After removing the velcro tape (A) on the rear of seat cushion and remove
the rear seat cushion cover (B).
|
|
8. |
Install in the reverse order of removal.
|
• |
Replace any damaged clips.
|
|
|
[Third row seat assembly]
| •
|
Put on gloves to protect your hands.
|
|
| •
|
When prying with a flat-tip screwdriver, wrap it with protective
tape, and apply protective tape around the related parts, to
prevent damage.
|
| •
|
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the third row seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
|
|
2. |
Remove the rear seat rear protector (A).
|
|
3. |

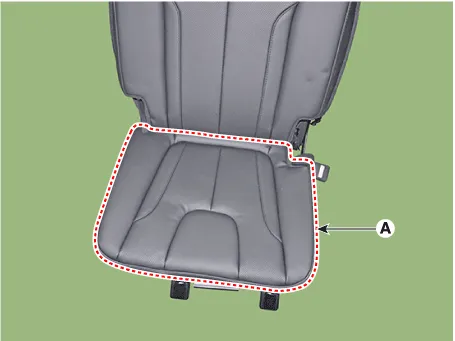

Remove the rear seat cusion cover (A) from the rear seat cusion frame.
|
|
4. |

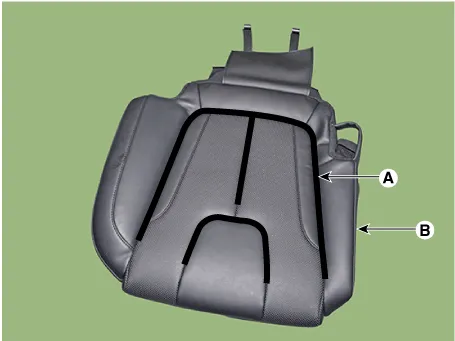

After removing the velcro tape (A) on the rear of seat cushion and remove
the rear seat cushion cover (B).
|
|
5. |
Install in the reverse order of removal.
|
• |
Replace any damaged clips.
|
|
|
