Hyundai Santa Fe (TM): Rear Heater / Rear Blower Motor. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Rear Heater / Rear Blower Motor. Repair procedures

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the luggage side trim [RH]. (Refer to Body - "Luggage Side Trim")

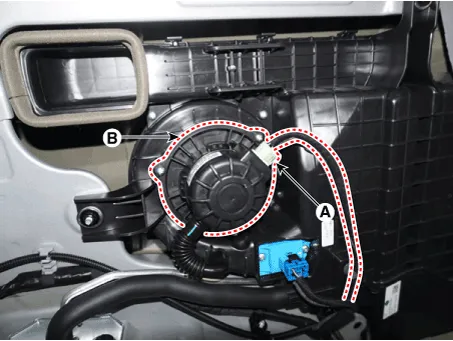

3.	Separate the blower motor connector (A) and loosen the mounting screws and remove the blower motor (B).

4.	Install in the reverse order of removal.
