Removal

•
In order to remove rear glass, use tools as follows shown in the picture.

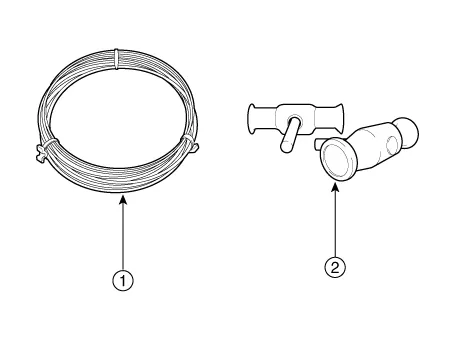

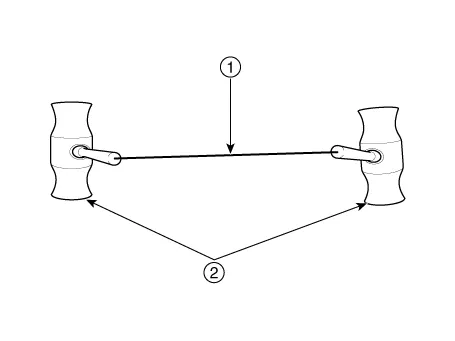

[Tools block diagram]

① Square wire
② Insert type wire grip
[Tools assembly diagram]
•
Tighten square wire ① inserting it in the hole of Insert type wire grip ②

1.
Remove the movable glass.
(Refer to Panorama Sunroof - "Movable Glass")
2.
Remove the side molding.
(Refer to Body Side Molding - " Roof Side Molding")
3.

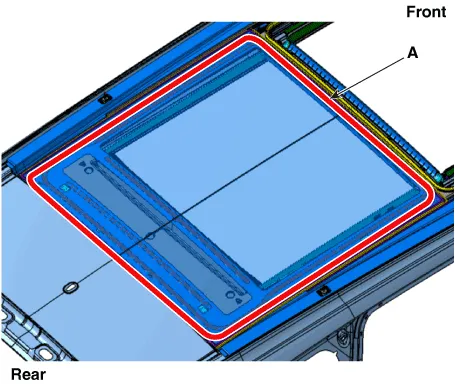

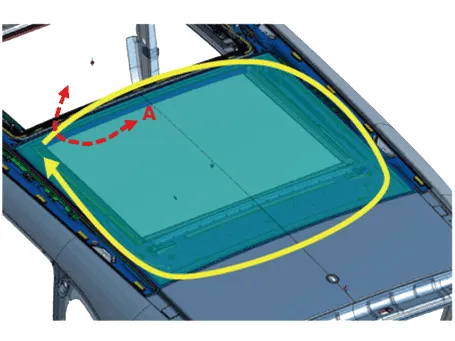

Cut sealant from front pulling square wire (A) from left to right.

•
Wear gloves not to get hurt in the hand.
•
Be careful not to be burned in the hand by too much heat using wire.
•
Work carefully because wire can be cut.

•
Give attention not to damage body.

4.

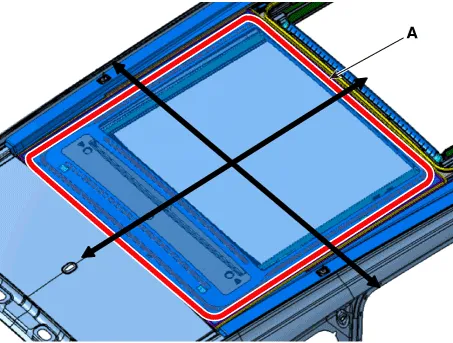

Carefully remove rear glass (A) not to be damaged.

Installation

•
In order to install rear glass, use tools as follows as shown in the picture.

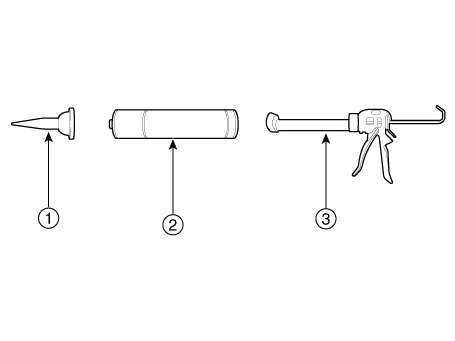

[Tools block diagram]

① Sealant nozzle
② Adhesive sealant only for glass
③ Sealant gun

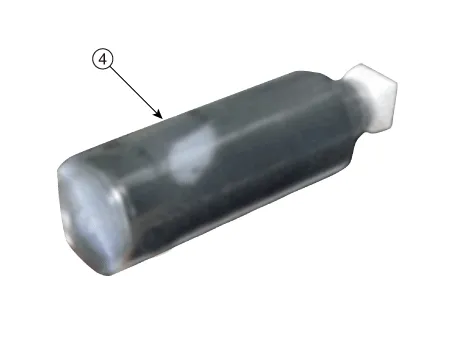

④ Primer

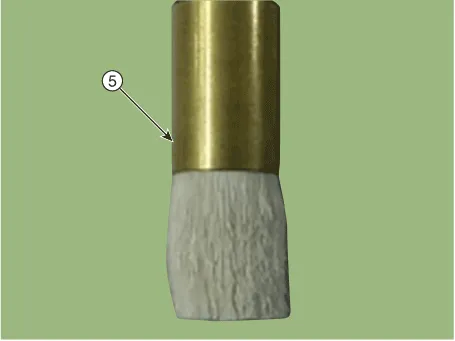

⑤ Primer application brush
1.

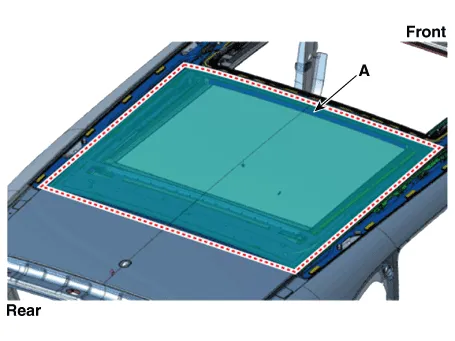

Cut remaining sealant (A) around body panel using knife blade.

•
When cutting sealant around body panel, leave 2 mm thick from adhesive spot.

•
Give attention not to damage painted area in the body.
•
If found damaged area, apply protective paint or rust inhibitor.

2.
Clean edges of body panel and rear glass thoroughly with alcohol or air gun.
3.

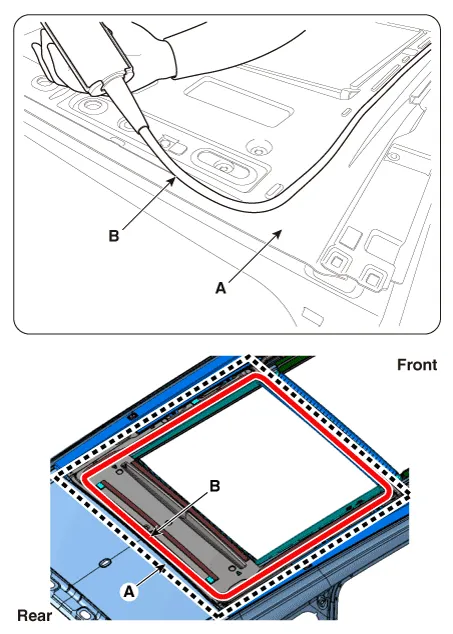

Apply sealant (B) arround body panel (A) using sealant gun.

•
When applying sealant using sealant gun avoid to cut off and water leak.

4.
Install the rear glass (A) on the body panel.
5.
Install the rear glass (A) completely after checking step and gap.
6.
Tape around rear glass not to make floating area.

•
Clean thoroughly with alcohol or cleaner when sealant is over applied and seen from outside of the body.


•
After rear glass is installed vehicle should be parked on flat place 4 hours at least.
•
If vehicle should be run, drive slowly within 8 hours at least.
•
Alert the driver to avoid driving the car aggressively for 2-3 days, or avoid driving in on irregular road surfaces.
7.
Install the movable glass.
(Refer to Panorama Sunroof - "Movable Glass")
