Replacement
1.

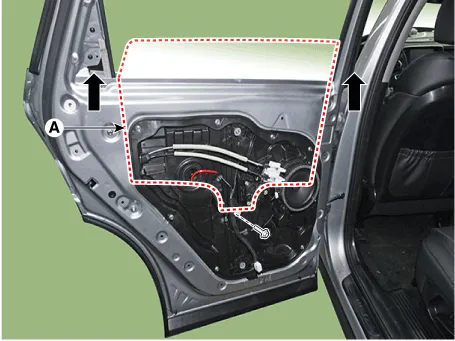

Remove the rear door trim.
(Refer to Rear door - " Rear door trim")
2.

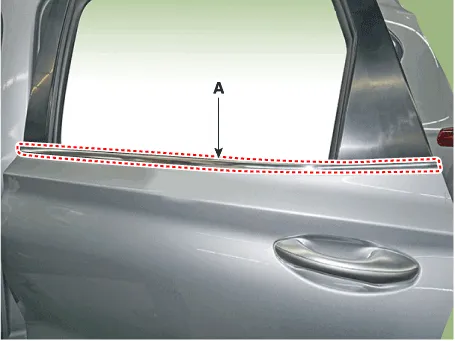

Using a remover and separate the rear door belt outside weatherstrip (A).
3.

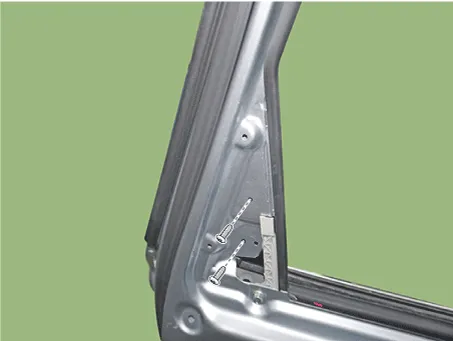

Loosen the rear door delta molding screws.
4.

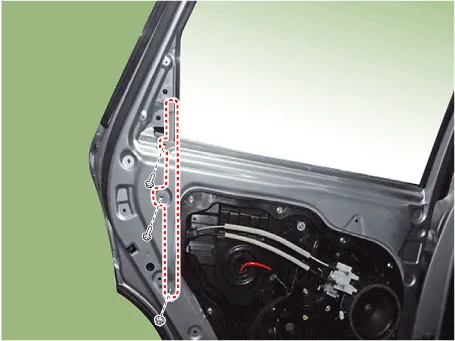

Unscrew the rear door channel mounting nut and bolt loosely.
Tightening torque
Nut : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt : 7.8 - 12.7 N.m (0.8 - 1.3Kgf.m, 5.8 - 9.4 lb-ft)

5.

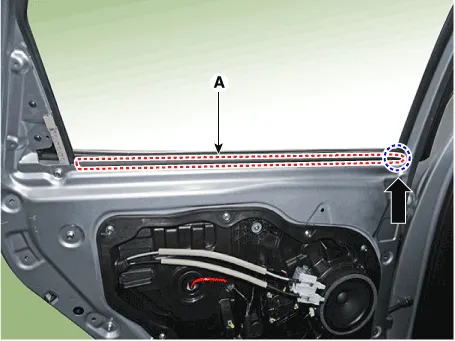

Remove the rear door belt inside weatherstrip (A).
6.

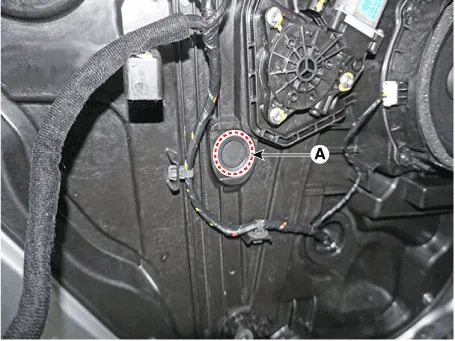

Remove the plug hole (A).
7.
By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.

•
Be careful not to damage the glass surface.
8.
Loosen the mounting bolt and then pull out the rear door window glass (A) by tilting it sideways.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

9.
To install, reverse removal procedure.

•
Make sure that the glass rolls up and down smoothly.
•
Adjust glass position as needed.
•
Make sure the door locks and opens properly.
•
Replace any damaged clips (or pin-type retainers).
