Hyundai Santa Fe (TM): Rear Door / Rear Door Side Weatherstrip. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip. Repair procedures

Replacement
[Rear door side weatherstrip]
1.

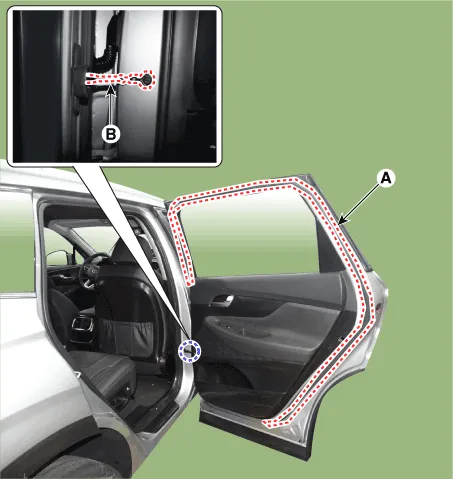

Loosen the rear door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.
Detach the clips, remove the rear door side weatherstrip (A).
3.
To install, reverse removal procedure.

•
Replace any damaged clips.
[Rear door body side weatherstrip]
1.

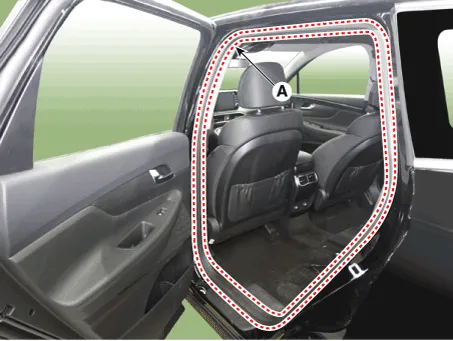

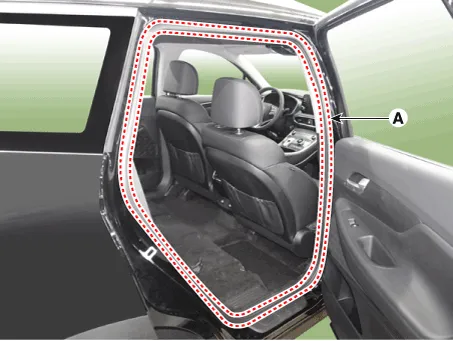

Detach the clips, then remove the rear door body side weatherstrip (A).
[LH]

[RH]
2.
To install, reverse the removal procedure.

    Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2.

    Replacement    • Put on gloves to prevent hand injuries.
