Hyundai Santa Fe (TM): Rear Door / Rear Door Belt Inside Weatherstrip. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip. Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

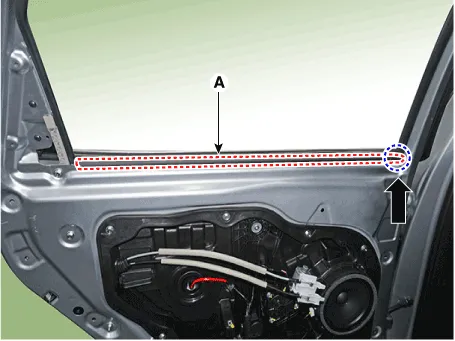

Remove the rear door belt inside weatherstrip (A).
3.
To install, reverse removal procedure.

•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•
Replace any damaged clips.

    Replacement 1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

    Replacement [Rear door side weatherstrip] 1. Loosen the rear door checker (B) mounting bolt. Tightening torque : 21.
