Hyundai Santa Fe (TM): Seat Electrical / Power Seat Motor. Repair procedures

Inspection

Power Seat Motor

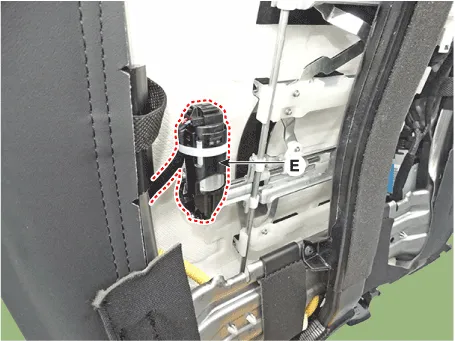

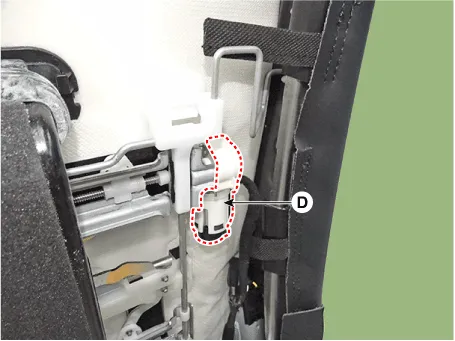

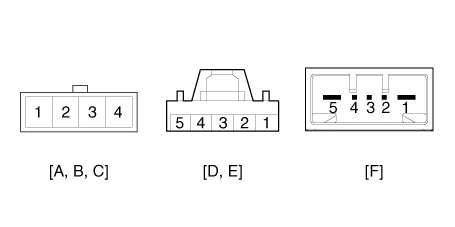

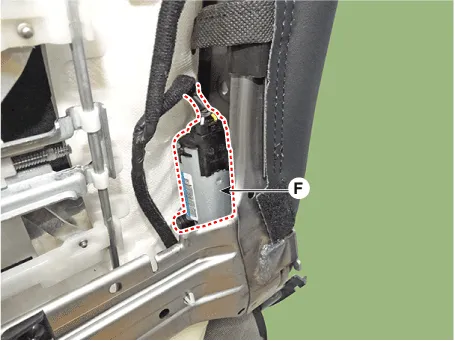

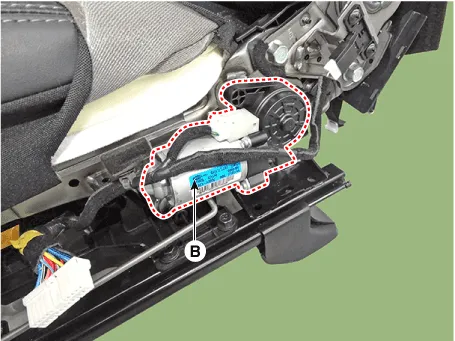

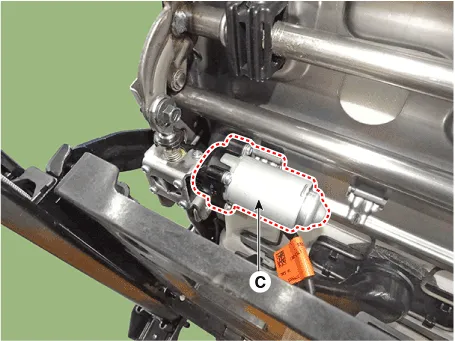

1.	Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") B : Rear height motor C : Front height motor D : Lumbar support motor (Horizontal) E : Lumbar supprot motor (Vertical) F : Recline motor

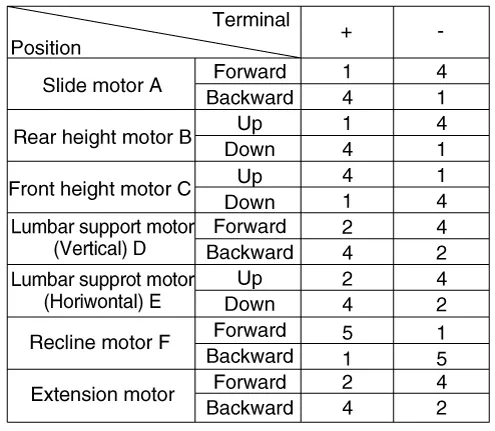

2.	With the battery connected directly to the motor terminals, check if the motors run smoothly.

3.	Reverse the connections and check that the motor turns in reverse.

4.	If there is an abnormality, replace the motors.

Reclining Motor Limit Switch

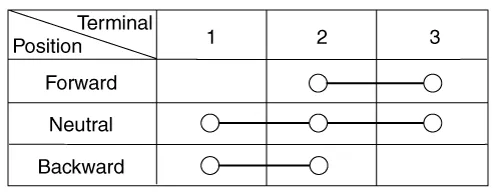

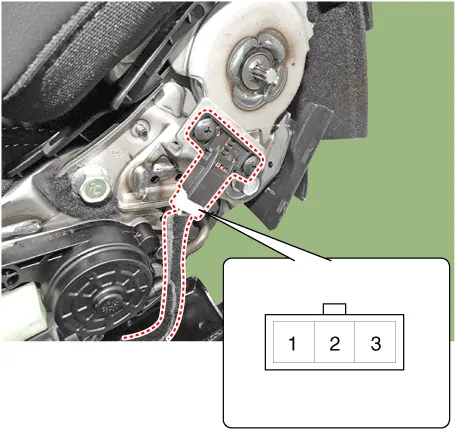

1.	Disconnect the limit switch and operate the limit switch.

3.	Make sure that the seat operation is normal in the reverse after the maximum operation.

4.	If there is an abnormality, replace the limit switch.
