Hyundai Santa Fe (TM): Driver Parking Assistance System / Remote Smart Parking Assist (RSPA). Schematic diagrams

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Driver Parking Assistance System / Remote Smart Parking Assist (RSPA). Schematic diagrams

Schematic Diagrams

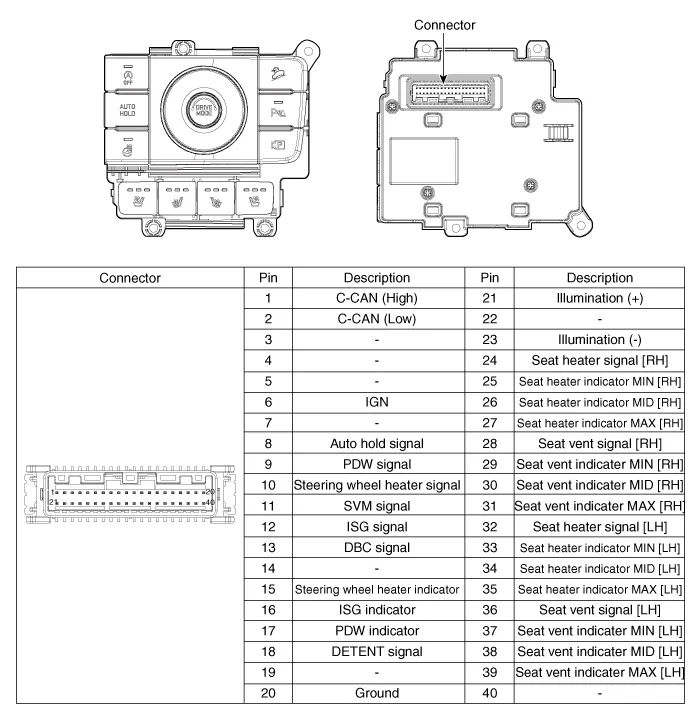

Parking/View Switch

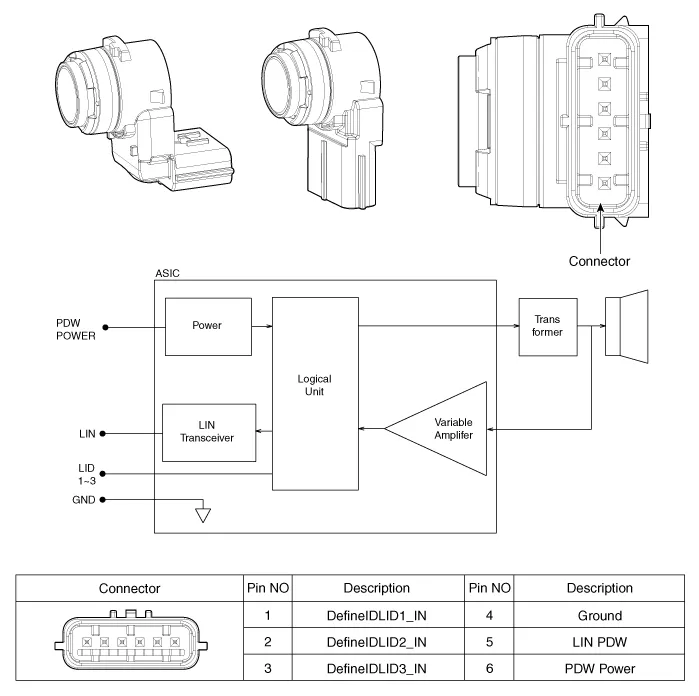

Ultrasonic Sensor

    Components and Components Location

    Removal ADAS Parking ECU (ADAS_PRK) 1. Disconnect the negative (-) battery terminal. 2. Remove the ADAS Parking ECU (ADAS_PRK).

    Other information:

    Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Parking Collision-Avoidance Assist (PCA). Schematic diagrams

    Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Parking Collision-Avoidance Assist (PCA). Repair procedures

    Removal Parking Collision-Avoidance Assist (PCA) Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the ADAS PRK Unit. (Refer to Advanced Driver Assistance System (ADAS) - "Driver Parking Assistance System") Parking Collision-Av
