Hyundai Santa Fe (TM): Seat Electrical / Power Seat Control Switch. Schematic diagrams

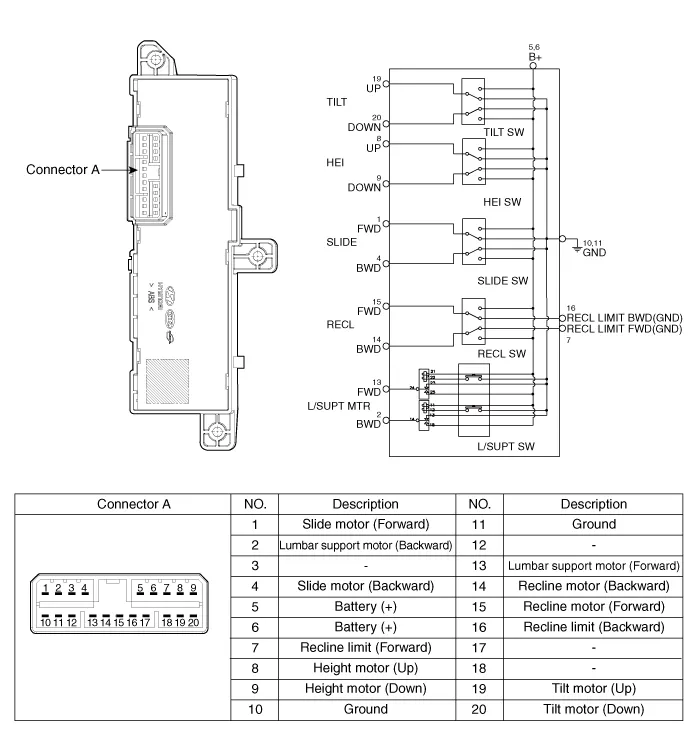

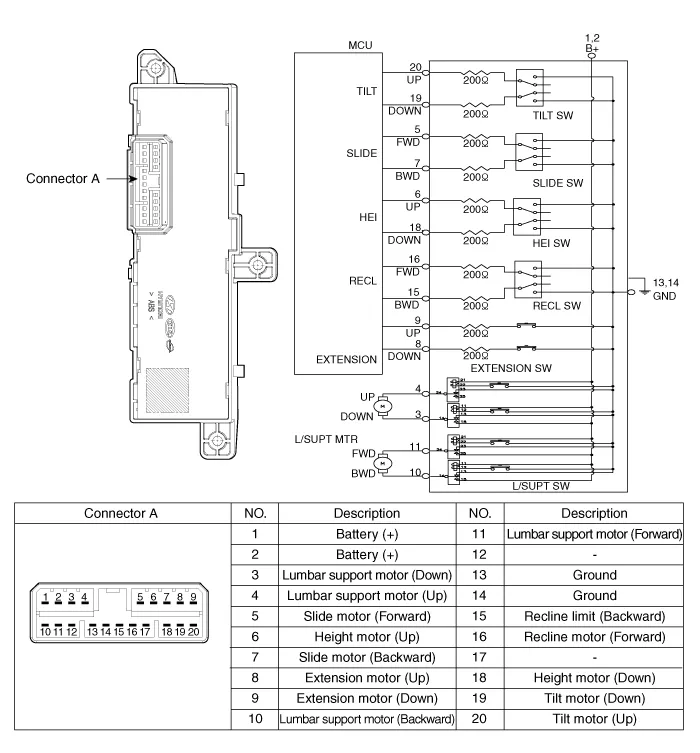

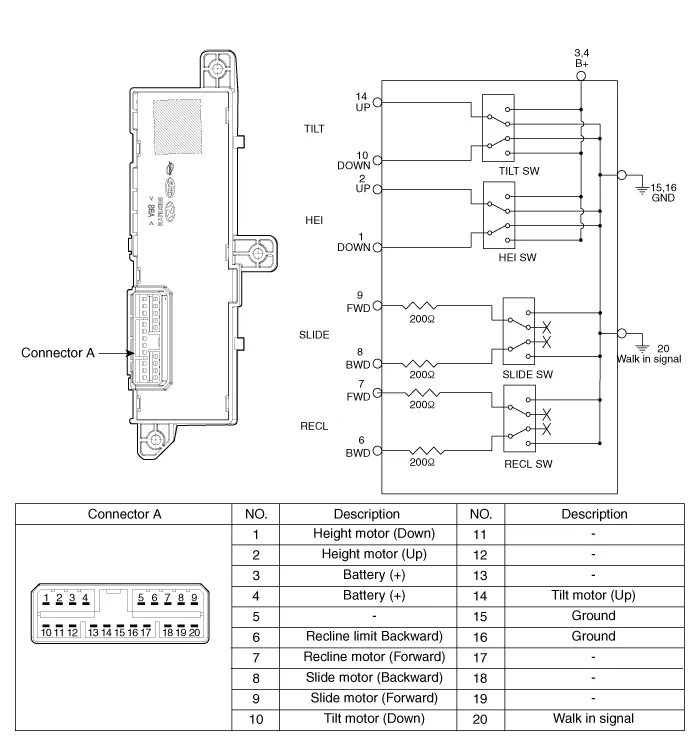

| Circuit Diagram |
Inspection Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") B : Rear height motor C : Front height motor D : Lumbar support motor (Horizontal) E : Lumbar supprot motor (Vertical) F : Recline motor 2.
Inspection 1. With the power seat switch in each position, make sure that continuity exists between the terminals below.
