Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Front Radar System / Smart Cruise Control (SCC) Switch. Components and components location

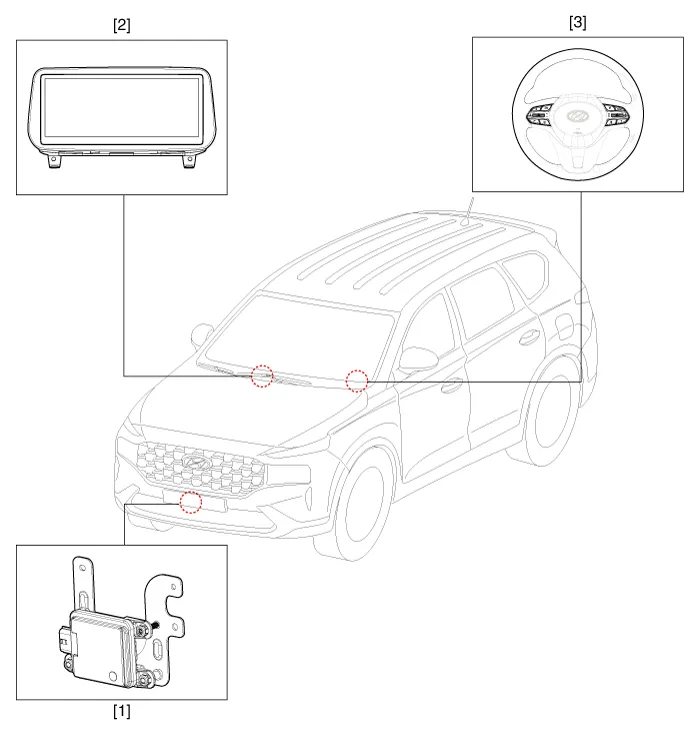

Components

1. Front radar unit
2. AVN Monitor
 3. Smart cruise control switch

    Inspection Inspection procedure for vehicle with Forward Collision-Avoidance Assist and Smart Cruise Control system failure 1.

    Circuit Diagram [Trip/Cruise/Smart Cruise]
