| Inspection |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |

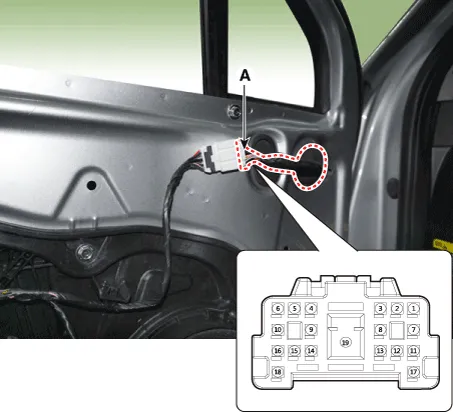

Disconnect the power door mirror connector (A) from the harness.
|
| 4. |

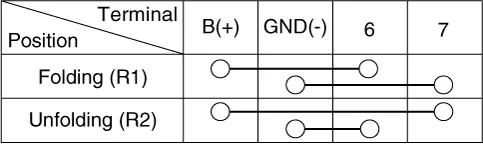

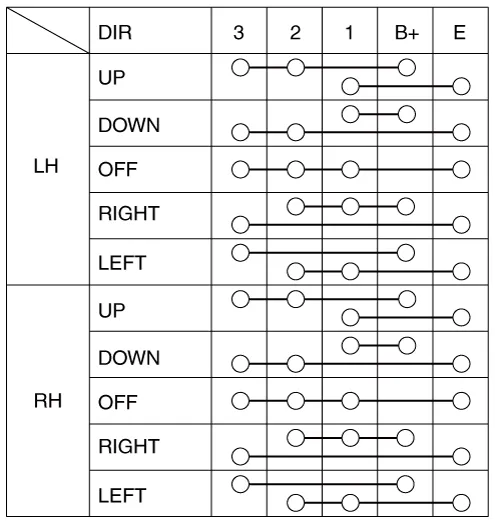

Apply battery voltage to each terminal as shown in the table and verify
that the mirror operates properly.

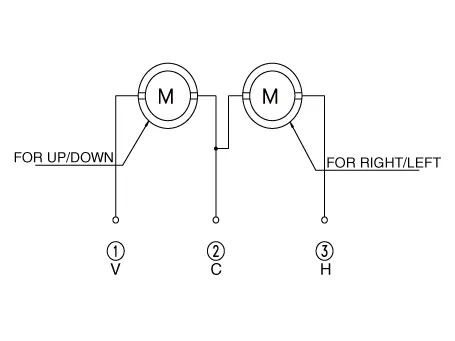

[Actuator]
BCW Indicator
Control Unit
Mirror Heater
Turn Signal Lamp
Puddle Lamp

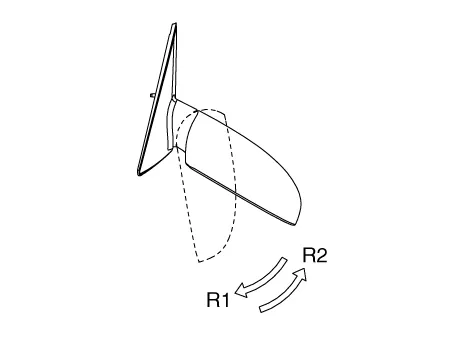

Folding Mirror
|
| Removal |
| 1. |
Disconnect (-) battery terminal.
|
| 2. |
Remove front door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove door mirror assembly.
(Refer to Body - "Outside View Mirror")
|
| 4. |

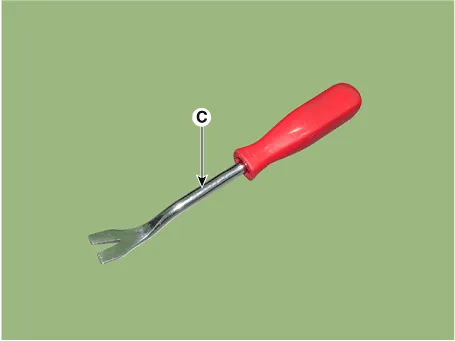

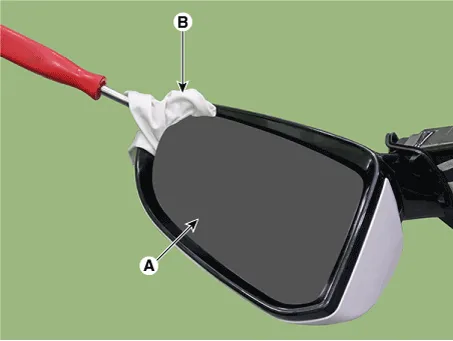

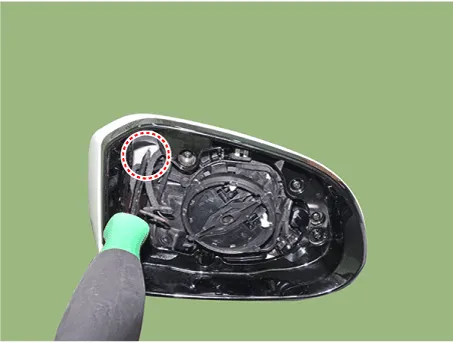

Using a fastener remover (C), remove the mirror (A) as illustration
below.
|
| 5. |

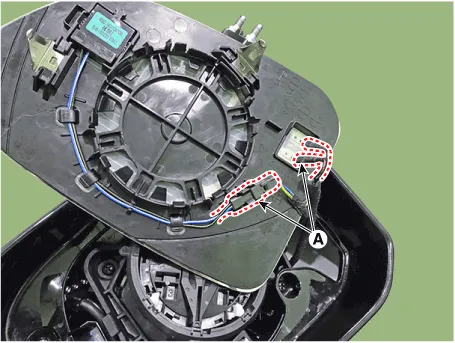

Disconnect heat wire connectors (A) and then remove the mirror.
|
| 6. |

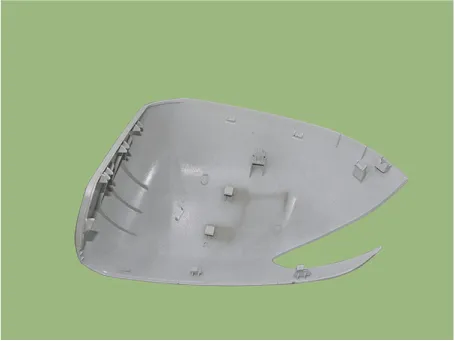

Remove the scalp.
|
| 7. |

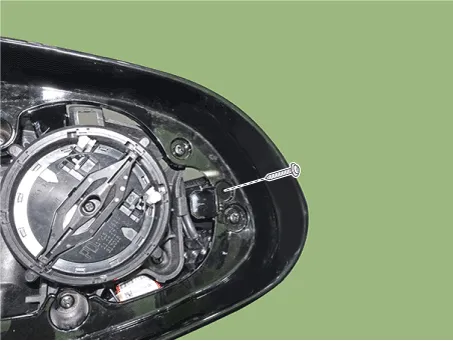

Remove front cover and LED side repeater lamp lock screw.
|
| 8. |

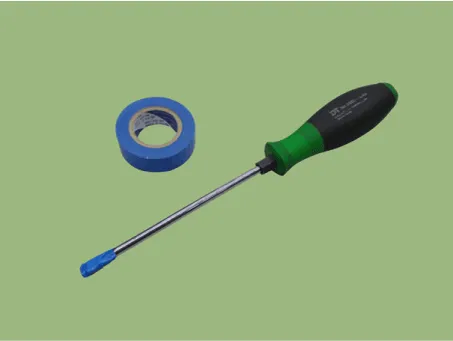

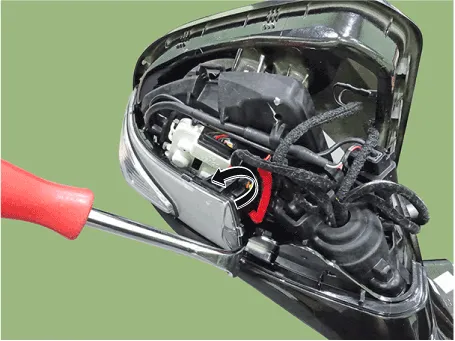

Using a fastener remover, remove the LED side repeater lamp as illustration
below.
|
| 9. |

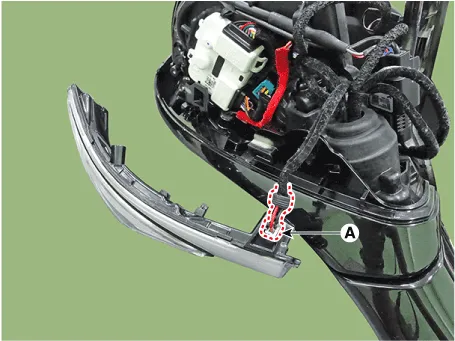

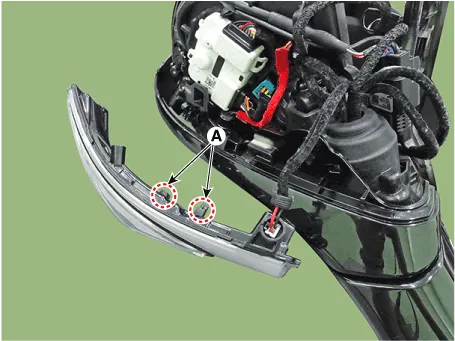

Disconnect the connector (A) and then remove the LED side repeater lamp.
|
| Installation |
| 1. |
Install the puddle lamp and LED side repeater lamp.
|
| 2. |
Install the scalp.
|
| 3. |
Connect mirror heat wire connector and BSD connector then mount mirror.
|
| 4. |
Install the door mirror assembly.
|
| 5. |
Connect (-) battery terminal then check if door mirror lamp works normally.
|
