Removal
1.
Disconnect (-) battery terminal.
2.

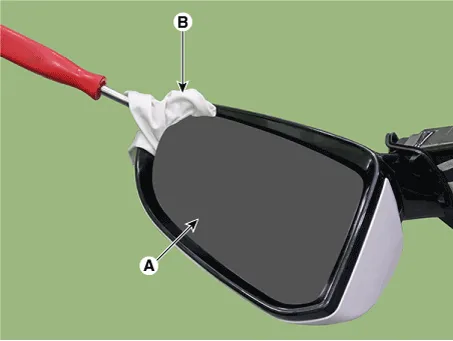

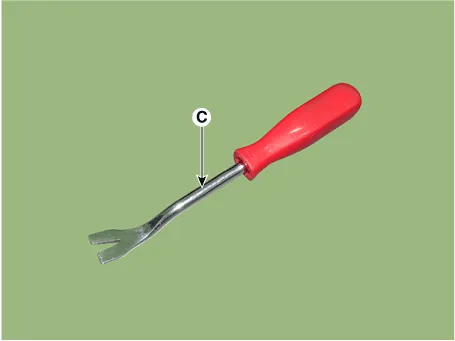

Using a fastener remover (C), remove the mirror (A) as illustration below.


•
Protect mirror from removing tool with cloth (B) wrapped.
•
Be careful not to damage mirror and mirror housing during removing process.
•
Apply force around the center of mirror because to apply force the end of mirror will break it.
3.

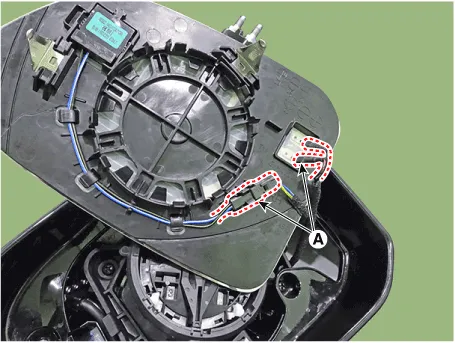

Disconnect heat wire connectors (A) and then remove the mirror.
4.

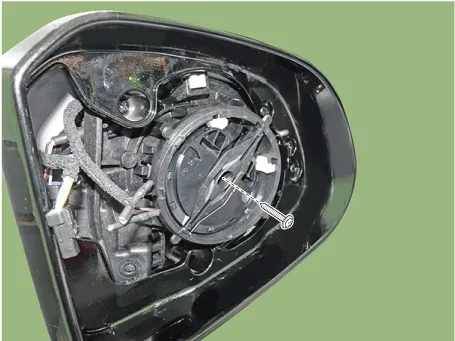

Remove the mirror actuator mounting screw.
5.

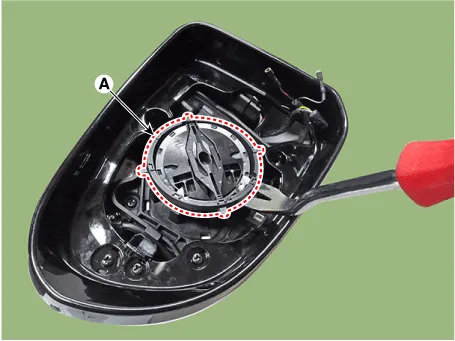

Insert the fastener remover into the end of the mirror actuator (A) and lift it up.
6.

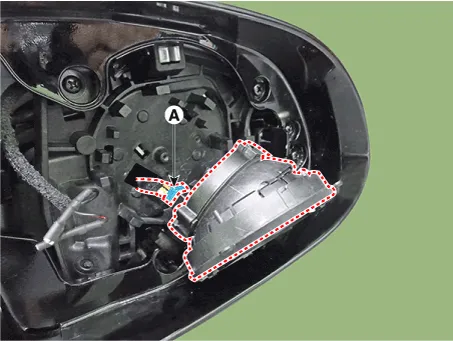

Disconnect the connector (A) and then remove the mirror actuator.
Installation
1.
Connect the actuator connector and then install the mirror actuator.
2.
Connect mirror heat wire connector and then install the mirror.
3.
Connect (-) battery terminal then check if mirror works normally.
