Hyundai Santa Fe (TM): Auto Head Lamp Leveling Device / Head Lamp Leveling Switch. Schematic diagrams
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Auto Head Lamp Leveling Device / Head Lamp Leveling Switch. Schematic diagrams

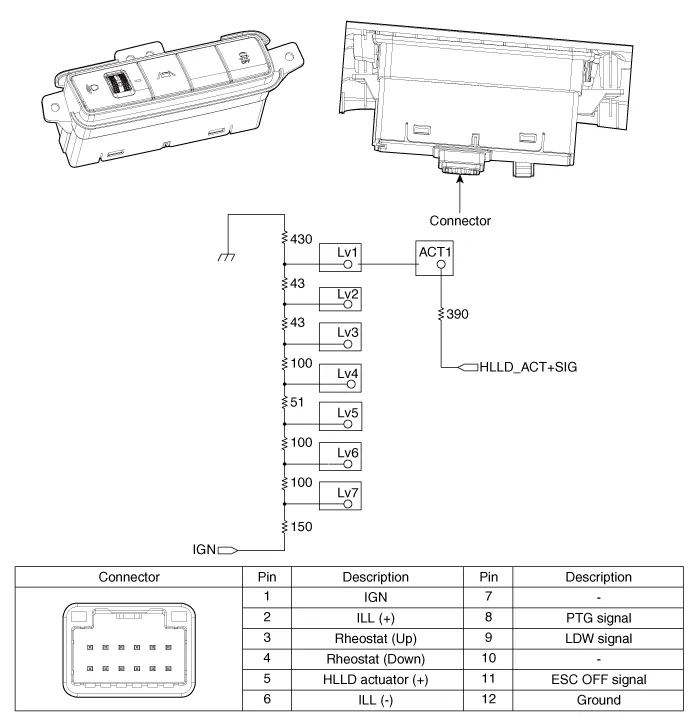

| Circuit diagram |
Component Location 1. Head lamp leveling actuator
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel.
