Hyundai Santa Fe (TM): Auto Head Lamp Leveling Device / Head Lamp Leveling Switch. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Auto Head Lamp Leveling Device / Head Lamp Leveling Switch. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.

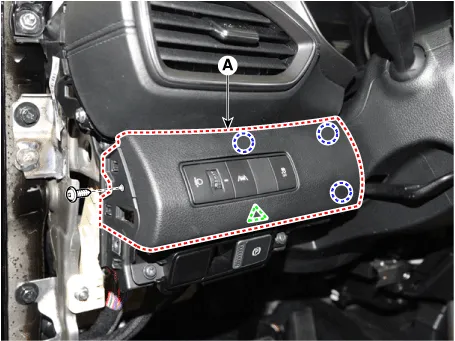

Loosen the mounting screw, remove the crash pad garnish [LH] (A).
4.

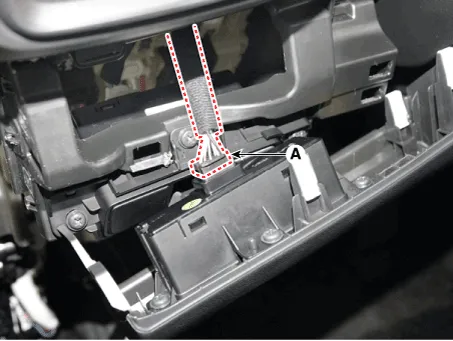

Press the lock pin, separate the connector (A).
5.

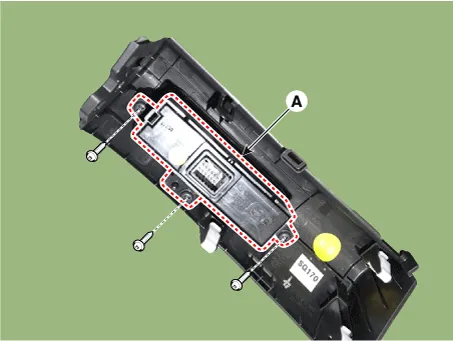

Remove the rheostat switch (A) after loosening mounting screws.
Installation
1.
Install the rheostat switch.
2.
Install the crash pad garnish [LH]
3.
Install the crash pad lower panel.
4.
Connect the negative (-) battery terminal.

    Circuit diagram
